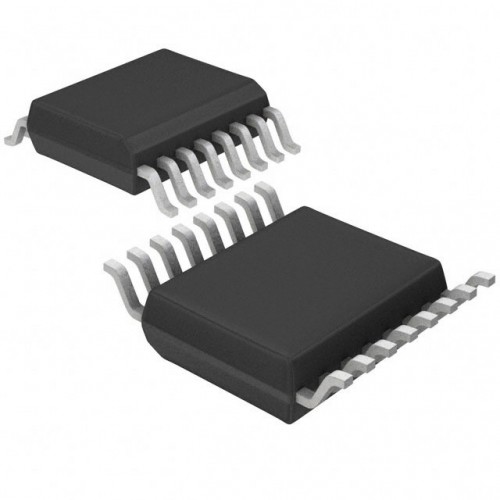

LTC1778 Switching Voltage Regulator (TSSOP-16) IC

LTC1778 Series Switching Voltage Regulator

LTC1778 Switching Voltage Regulator; Wide input voltage range 4V-36V; High efficiency up to 95%.

The LTC1778 Series Switching Voltage Regulator is designed for a wide input voltage range of 4V to 36V, making it ideal for diverse applications. This switching regulator features a no-RSENSE™ architecture, eliminating the need for a current sense resistor to enhance efficiency and minimize power losses. With adjustable output voltage down to 0.8V, it is perfect for powering microprocessors and FPGAs in various electronic systems.

Operating at a typical switching frequency of 200 kHz, the LTC1778 ensures fast transient response due to its current-mode control. This feature simplifies loop compensation while providing high efficiency, particularly at high load currents. Packaged in a compact TSSOP-16 form factor, it is suitable for surface-mounted designs, catering to modern electronic applications.

For Indian customers seeking reliable voltage regulation, the LTC1778 Series Switching Voltage Regulator meets the demands of automotive and industrial systems. Explore our extensive range of voltage regulators to find the perfect fit for your projects.

Discover the efficiency of LTC1778 Analog Device Series at DNA. Explore our comprehensive range of Voltage Regulators to meet your electronic needs. Check other Voltage Regulators that we have in stock.

If you are looking for specific electronic components, feel free to reach out to us at DNA. We can import items if they are not available, and we support both retail and bulk orders. Check out related components like Humidity & Temperature Sensors, Microcontrollers, Inductors, and more. Contact Us.

Features of LTC1778 Series Switching Voltage Regulator

• Wide input voltage range: 4V to 36V
• No-RSENSE™ architecture
• Synchronous rectification
• Current-mode control
• Adjustable output voltage down to 0.8V
• High efficiency up to 95%.

Specification of LTC1778 Series Switching Voltage Regulator

• Input Voltage Range: 4V to 36V
• Output Voltage Range: 0.8V to VIN (programmable)
• Switching Frequency: 200 kHz (typical, adjustable)
• Quiescent Current: 600 µA (typical)
• Efficiency: Typically up to 95%.

Applications of LTC1778 Series Switching Voltage Regulator

• Powering microprocessors
• FPGAs
• Automotive systems
• Industrial applications
• Low-voltage electronics.

Related Links for LTC1778 Series Switching Voltage Regulator

• Other Products from Voltage Regulators Category

Package Includes

• 1 X LTC1778 Series Switching Voltage Regulators (TSSOP-16) IC
