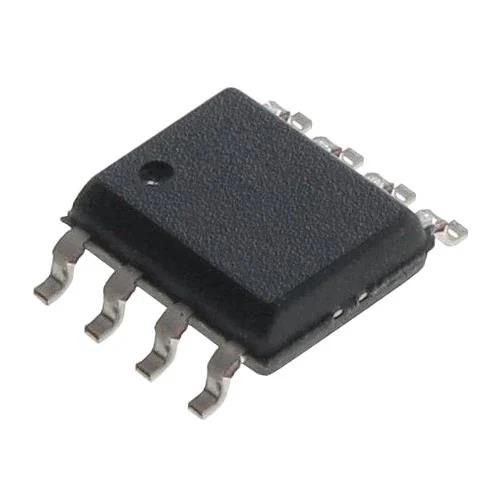

MAX660ESA+T CMOS Monolithic Voltage Converter IC

MAX660ESA+T CMOS Monolithic Voltage Converter IC

The MAX660ESA+T CMOS monolithic, charge-pump voltage inverter converts a +1.5V to +5.5V input to a corresponding -1.5V to -5.5V output. Using only two low-cost capacitors, the charge pump’s 100mA output replaces switching regulators, eliminating inductors and their associated cost, size, and EMI. Greater than 90% efficiency over most of its load-current range combined with a typical operating current of only 120µA provides ideal performance for both battery-powered and board level voltage conversion applications. The MAX660 can also double the output voltage of an input power supply or battery, providing +9.35V at 100mA from a +5V input.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

• Small Capacitors

• 0.65V Typ Loss at 100mA Load

• Low 120µA Operating Current

• 6.5Ω Typ Output Impedance

• Guaranteed ROUT < 15Ω for C1 = C2 = 10µF

• Pin-Compatible High-Current ICL7660 Upgrade

• Inverts or Doubles Input Supply Voltage

• Selectable Oscillator Frequency: 10kHz/80kHz

• 88% Typ Conversion Efficiency at 100mA (IL to GND)

Applications of MAX660ESA+T CMOS Monolithic Voltage Converter IC

• Laptop Computers

• Medical Instruments

• Interface Power Supplies

• Hand-Held Instruments

• Operational-Amplifier Power Supplies

Package Includes

• 1 x MAX660ESA+T CMOS Monolithic Voltage Converter IC
