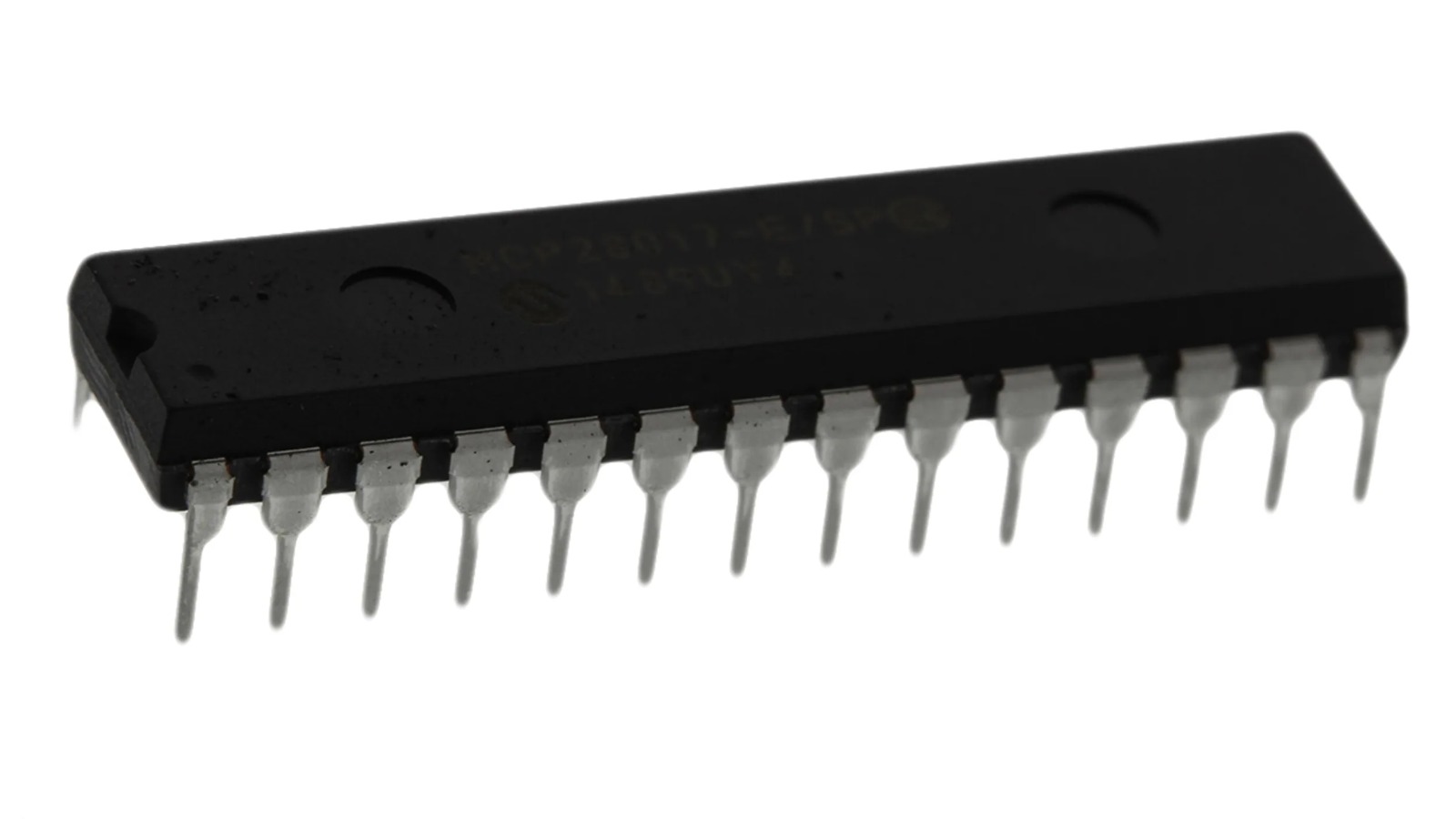

Product Images are shown for illustrative purposes only and may differ from actual product.

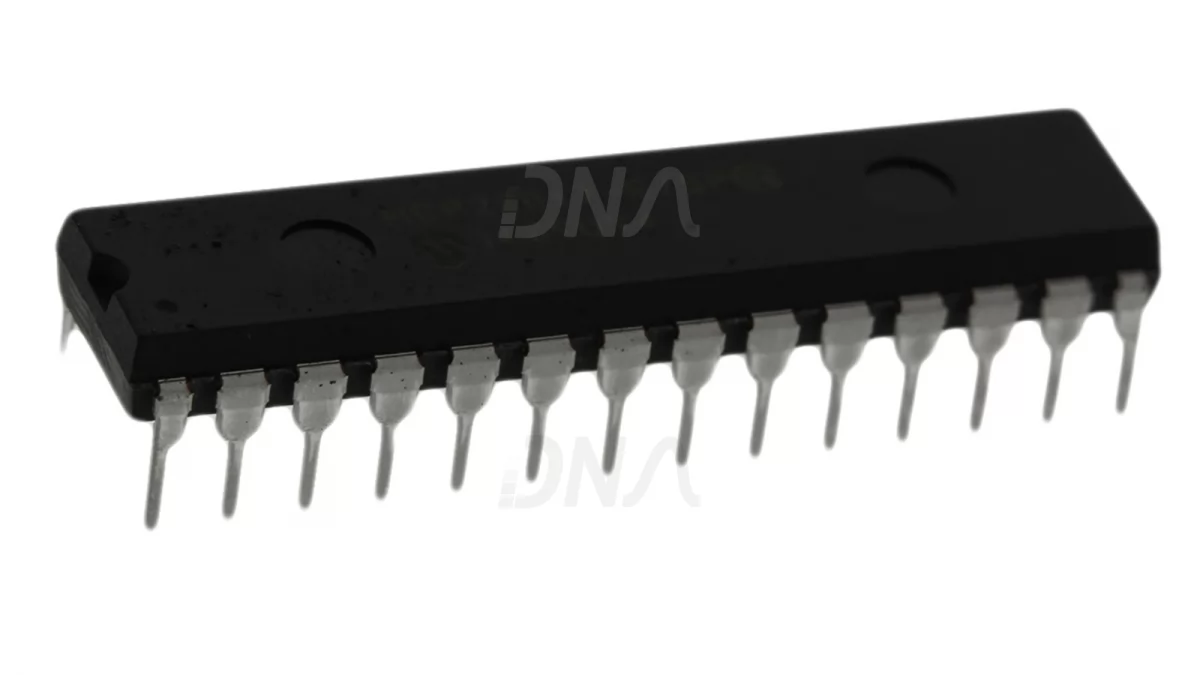

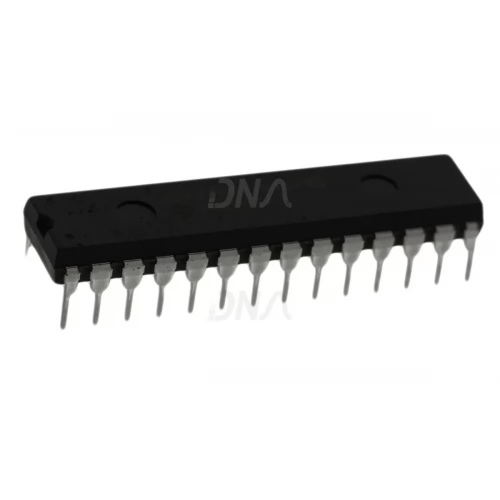

MCP23017 E/SP 16 bit, I2C MICROCHIP 28-PIN IC


Write a review | 0 reviews

  • Stock: 5

    Availability: InStock priceValidUntil: 2026-02-27

  • SKU: 7647 | DAH273

Availability: InStock priceValidUntil: 2026-02-27

  • Rs. 243.38 (inc GST)
    Rs.206.25 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

MCP23017 E/SP 16 bit, I2C MICROCHIP 28-PIN IC

MCP23017-E/SP-MICROCHIP-I/O Expander, 16 bit, I2C, Serial, 1.8 V, 5.5 V, DIP, 28 Pins

The MCP23017-E/SP consists of multiple 8 bit configuration registers for input, output and polarity selection. The system master can enable the I/Os as either inputs or outputs by writing the I/O configuration bits (IODIRA/B). The data for each input or output is kept in the corresponding input or output register. The polarity of the Input Port register can be inverted with the Polarity Inversion register. All registers can be read by the system master.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of MCP23017 E/SP 16 bit, I2C MICROCHIP 28PIN IC

  • 16 bit remote bidirectional I/O port
  • High speed I2C interface
  • Three hardware address pins to allow up to eight devices on the bus
  • Configurable interrupt output pins
  • INTA and INTB can be configured to operate independently or together
  • Configurable interrupt source
  • Polarity Inversion register to configure the polarity of the input port data

Specifications of MCP23017 E/SP 16 bit, I2C MICROCHIP 28PIN IC

  • GPIO Pins - 16
  • Communication Interface - I²C (2-wire)
  • Operating Voltage - 1.8V to 5.5V
  • I²C Speed - Up to 1.7 MHz (High-Speed Mode)
  • Interrupt Outputs - 2 (INTA, INTB)
  • Package Type - 28-pin DIP

    Package Includes

    • 1 x MCP23017 E/SP 16 bit, I2C MICROCHIP 28PIN IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
