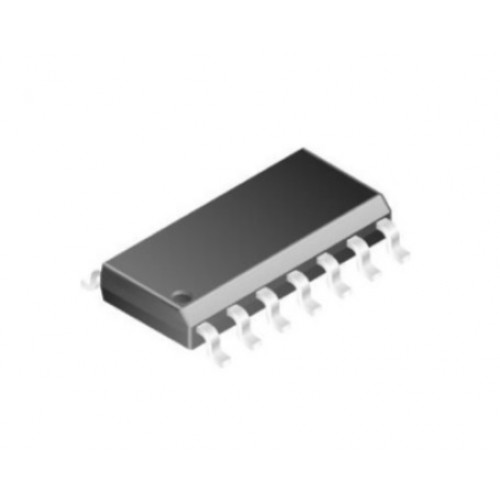

TL064C Low power JFET quad operational amplifier -SOIC-14 IC

TL064C Low Power JFET Quad Operational Amplifier IC

TL064C Low power JFET quad op-amp with low power consumption, high input impedance and output short-circuit protection.

The TL064C Low Power JFET Quad Operational Amplifier IC is designed for applications requiring high-speed performance. This quad op-amp features a low power consumption of just 200μA, making it ideal for battery-operated devices. With a wide supply voltage range from ±3V to ±18V and low input bias currents, it suits various electronic designs. Each amplifier offers high input impedance and output short-circuit protection, ensuring reliable operation in demanding environments.

Engineered with precision, the TL064C integrates J-FET and bipolar transistors in a monolithic structure, providing excellent stability and low offset voltage. Its internal frequency compensation and latch-up free operation enhance its efficiency for complex signal processing tasks.

Ideal for instrumentation and control systems, the TL064C Low Power JFET Quad Operational Amplifier IC is a versatile choice for engineers looking for performance and reliability in their circuit designs. Explore the extensive applications of this op-amp in sensor interfacing and signal conditioning.

Explore the precision of Instrumentation Amplifiers at DNA. The TL064C Low Power JFET Quad Operational Amplifier IC is a reliable choice for your projects. Check other Instrumentation Amplifiers that we have in stock.

If you're searching for specific electronic components, DNA can assist you. We can import items not in stock and support you in retail or bulk purchases. Check out related products like Hongfa Relay, IGBT, Crystal, DC to DC Converter Module, Connectors, and HMI Display. Contact Us.

Features of TL064C Low Power JFET Quad Operational Amplifier IC

• Very low power consumption
• Wide common-mode and differential voltage ranges
• Low input bias and offset currents
• Output short-circuit protection
• High input impedance J-FET input stage
• Internal frequency compensation
• Latch-up free operation

Specification of TL064C Low Power JFET Quad Operational Amplifier IC

• Input Type: JFET (low bias current, high input impedance)
• Number of Amplifiers: 4 (quad op-amp)
• Supply Voltage Range: ±3V to ±18V (dual supply) or 6V to 36V (single supply)
• Input Offset Voltage: Typically 3mV, maximum 10mV
• Input Bias Current: Typically 30pA
• Quiescent Current (per amplifier): 200µA (low-power consumption)

Applications of TL064C Low Power JFET Quad Operational Amplifier IC

• Sensor interfacing
• Signal conditioning
• Data acquisition systems
• Control systems
• Medical instrumentation

Package Includes

• 1 X TL064C Low Power JFET Quad Operational Amplifier IC
