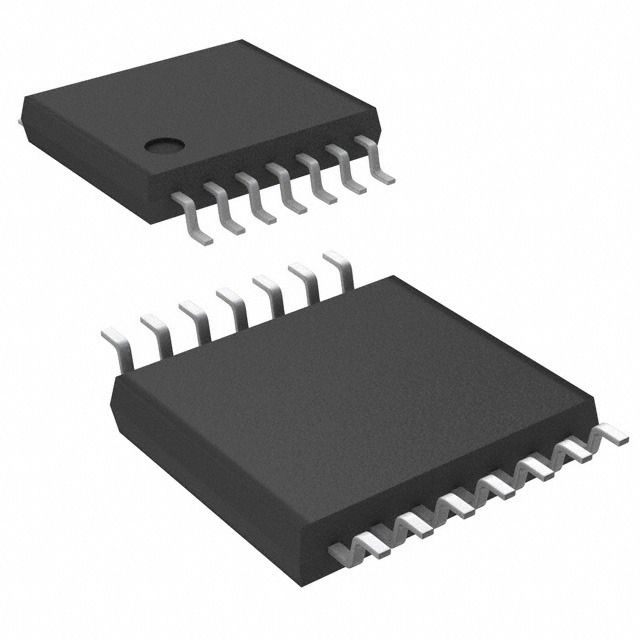

TSZ124IYPT Very high accuracy zero drift micropower 5V operational amplifier IC

TSZ124IYPT Very high accuracy zero drift micropower 5 V operational amplifier IC

The TSZ124IYPT series of high precision operational amplifiers offer very low input offset voltages with virtually zero drift. TSZ121 is the single version, TSZ122 the dual version, and TSZ124 the quad version, with pinouts compatible with industry standards. The TSZ124IYPT series offers rail-to-rail input and output, excellent speed/power consumption ratio, and 400 kHz gain bandwidth product, while consuming less than 40 µA at 5 V. The devices also feature an ultra-low input bias current. These features make the TSZ124IYPT family ideal for sensor interfaces, battery-powered applications and portable applications.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• Very high accuracy and stability: offset voltage 5 µV max at 25 °C, 8 µV over full temperature range (-40 °C to 125 °C)

• Rail-to-rail input and output

• Low supply voltage: 1.8 - 5.5 V

• Low power consumption: 40 µA max. at 5 V

• Gain bandwidth product: 400 kHz

• High tolerance to ESD: 4 kV HBM

• Extended temperature range: -40 to 125 °C

Applications of TSZ124IYPT Very high accuracy zero drift micropower 5V operational amplifiers IC

• Battery-powered applications

• Portable devices

• Signal conditioning

• Medical instrumentation

Package Includes

      1 x TSZ124IYPT Very high accuracy zero drift micropower 5 V operational amplifiers IC
