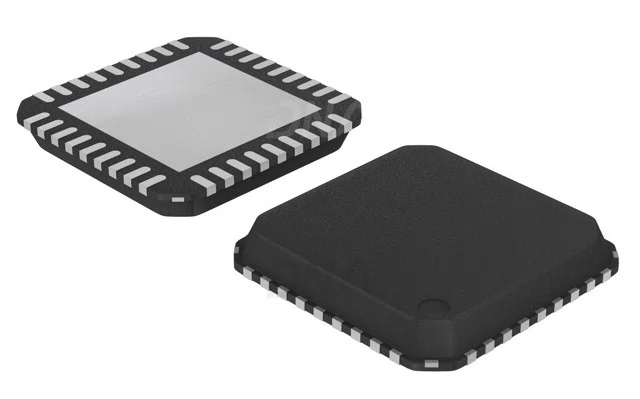

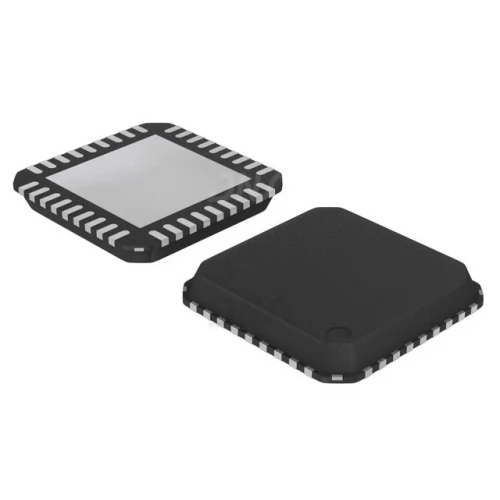

USB2514B AEZG High-Speed Hub Controller IC

USB2514B AEZG High-Speed Hub Controller IC

The Microchip USB2514B AEZG hub is a family of low-power, configurable, MTT (multi transaction translator) hub  controller  IC  products  for  embedded  USB  solutions. The x in the part number indicates the number of down stream ports available, while the B indicates battery charging support. The Microchip hub supports low-speed, full-speed, and hi-speed (if operating as a hi-speed hub) downstream devices on all of the enabled down stream ports.

DNA solutions, Nashik has various types of  IC's. Check out our complete collection of  IC's.

• Full power management with individual or ganged power control of each downstream port


• Fully integrated USB termination and pull-up/pull-down resistors


• Supports a single external 3.3 V supply source; internal regulators provide 1.2 V internal core volt-age


• Onboard 24 MHz crystal driver or external 24 MHz clock input


• Customizable vendor ID, product ID, and device ID


• 4 kilovolts of HBM JESD22-A114F ESD protection (powered and unpowered)


Applications of USB2514B AEZG High-Speed Hub Controller IC

• LCD monitors and TVs


• Multi-function USB peripherals


• PC motherboards


• Set-top boxes, DVD players, DVR/PVR


• Printers and scanners


• PC media drive bay


• Portable hub boxes


• Embedded systems


Package Includes

• 1 x USB2514B AEZG High-Speed Hub Controller IC
