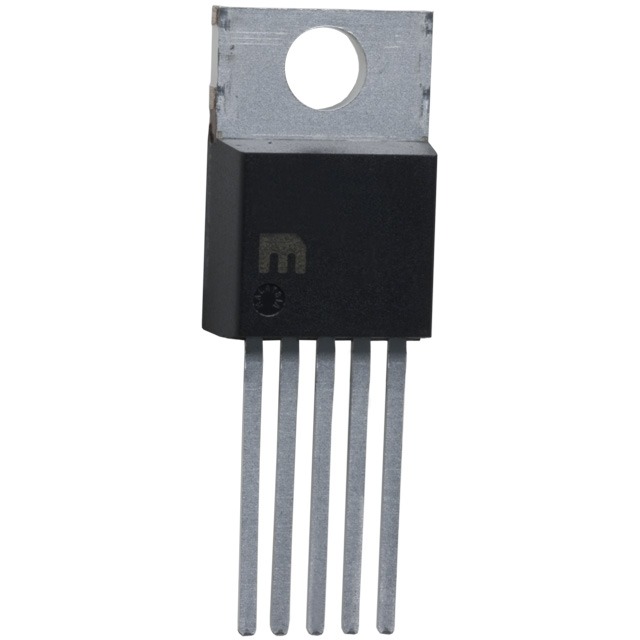

Product Images are shown for illustrative purposes only and may differ from actual product.

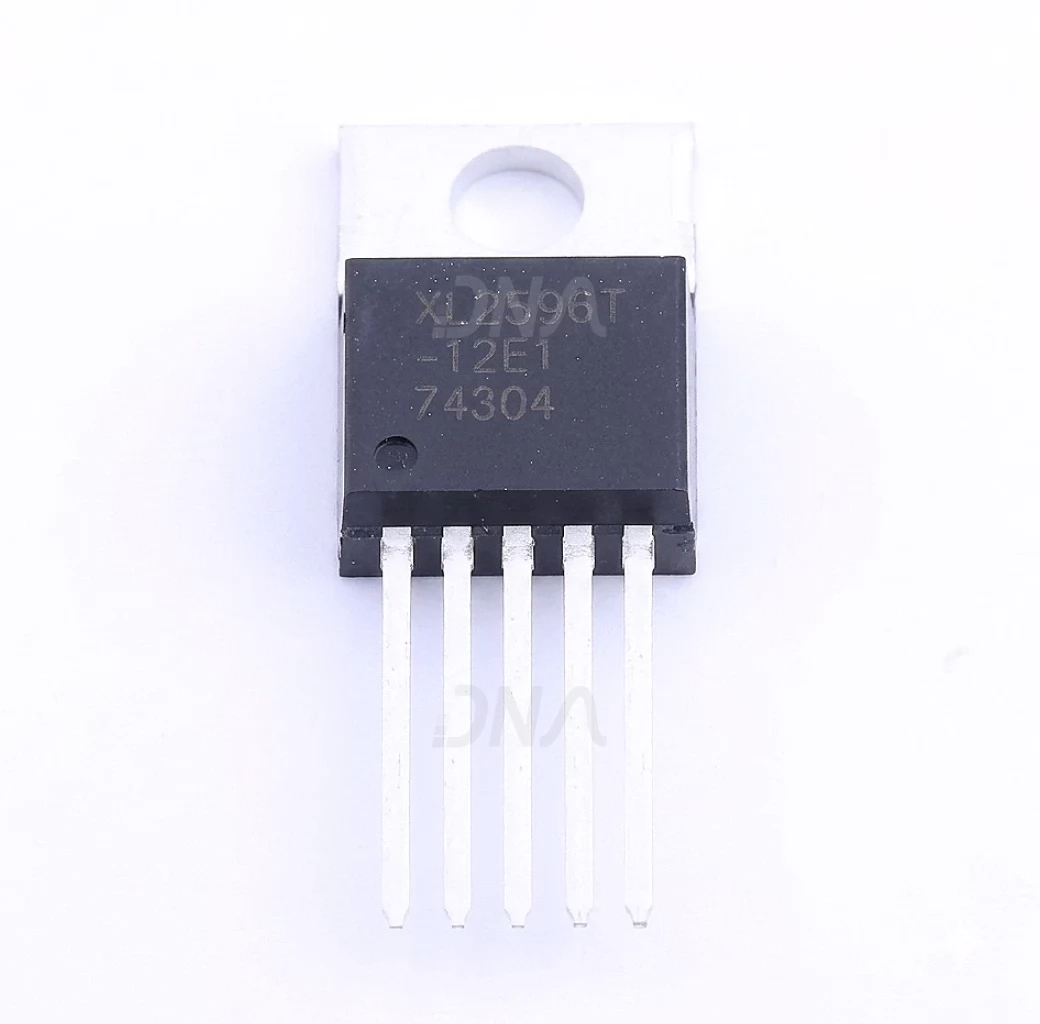

XL2596 12Volt PWM Stepdown DC/DC Buck Converter TO-220-5 IC


Write a review | 0 reviews

  • Stock: 150

    Availability: InStock priceValidUntil: 2026-11-03

  • Brand: XL Semi
  • SKU: 7255 | DAF753

Availability: InStock priceValidUntil: 2026-11-03

  • Rs. 46.14 (inc GST)
    Rs.39.10 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

XL2596 12Volt PWM Stepdown DC/DC Buck Converter Module

XL2596 12V Buck Converter; 3A output; 90% efficiency; Fixed frequency 150KHz.

The XL2596 12Volt PWM Stepdown DC/DC Buck Converter Module is designed for efficient voltage regulation. It handles a wide input voltage range from 4.5V to 40V and provides a stable output of 12V with a maximum current of 3A. This module features excellent efficiency, reaching up to 90%, making it suitable for various electronic applications in India.

With a fixed switching frequency of 150KHz, the XL2596 12Volt PWM Stepdown DC/DC Buck Converter Module minimizes ripple and enhances performance. Its simple design requires minimal external components, making installation straightforward. The internal frequency compensation and overcurrent protection ensure reliability in operation.

Ideal for powering sensors, development boards, and other electronic devices, the XL2596 12Volt PWM Stepdown DC/DC Buck Converter Module is a valuable addition to your toolkit. Explore the benefits of this module for your electronic projects and achieve consistent performance.

Explore our range of quality DC to DC Converter Modules at DNA. The XL2596 is a reliable choice for efficient voltage conversion. Check other DC to DC Converter Modules that we have in stock.

At DNA, we cater to all your electronic needs. If you're looking for specific parts, reach out to us. We can import components not in stock and support both retail and bulk orders. Explore related items like Sensors, Development Boards, and Analog ICs. Contact Us.

Features of XL2596 12Volt PWM Stepdown DC/DC Buck Converter Module

  • Wide input voltage range from 4.5V to 40V
  • 3A output current
  • High efficiency up to 90%
  • Fixed switching frequency of 150KHz
  • Internal overcurrent protection

Specification of XL2596 12Volt PWM Stepdown DC/DC Buck Converter Module

  • Input Voltage Range: 4.5V to 40V
  • Output Voltage: 12V (Fixed)
  • Output Current: 3A (Maximum)
  • Efficiency: Up to 90%
  • Switching Frequency: 150 kHz
  • Output Voltage Ripple: Typically 50mV

Applications of XL2596 12Volt PWM Stepdown DC/DC Buck Converter Module

  • Powering electronic devices
  • Voltage regulation in circuits
  • Supplying development boards
  • Use in sensors
  • General purpose electronics

Related Links for XL2596 12Volt PWM Stepdown DC/DC Buck Converter Module

Package Includes

  • 1 X XL2596 12Volt PWM Stepdown DC/DC Buck Converter Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
