  • MCP4921 12 BIT DAC

Product Images are shown for illustrative purposes only and may differ from actual product.

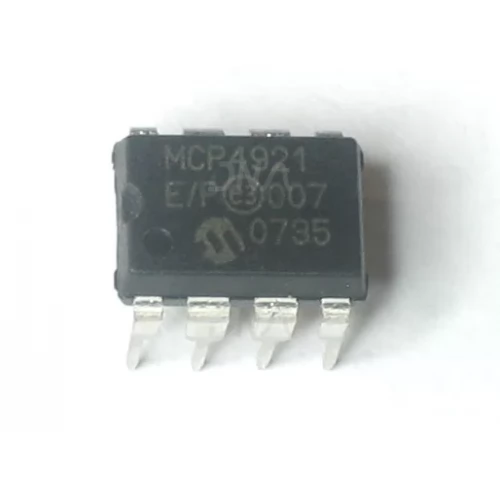

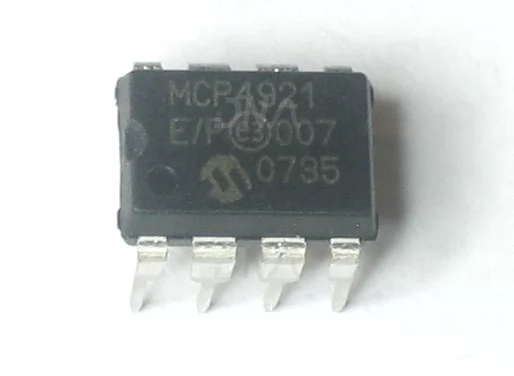

MCP4921 12 BIT DAC

  • Stock: 6
  • SKU: 0391 | DAA042
  • Rs. 200.60 (inc GST)
    Rs.170.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

MCP4921 12-BIT DAC

12-Bit Digital to Analog Convertor with SPI Interface

The MCP4921 from Microchip is a single channel 12-bit DAC which uses an external voltage reference. This device offers high accuracy and low power consumption, and is available in various packages. Communication with the device is accomplished via a simple serial interface using SPI protocols. The MCP4921 device is a part of the MCP4901/MCP4911/MCP4921 product family, which are single channel 8-bit/10-bit/12-bit DACs which use external voltage reference (VREF). These devices provide very high accuracy and low noise performance, and are suitable for consumer and industrial applications, such as set point control, offset adjustment and sensor calibration applications. The low power consumption and small package options make these devices very attractive for many portable and battery-powered applications. If two outputs are needed then the MCP4902/412/4922 dual channel product family can be used.

Features of MCP4921

  • 12-Bit Resolution
  • ±0.2 LSB DNL (typ)
  • ±2 LSB INL (typ)
  • Single or Dual Channel
  • Rail-to-Rail Output
  • SPI™ Interface with 20 MHz Clock Support
  • Simultaneous Latching of the Dual DACs w/LDAC
  • Fast Settling Time of 4.5 µs
  • Selectable Unity or 2x Gain Output
  • 450 kHz Multiplier Mode
  • External VREF Input
  • 2.7V to 5.5V Single-Supply Operation
  • Extended Temperature Range: -40°C to +125°C

Applications of MCP4921

  • Set Point or Offset Trimming

  • Sensor Calibration
  • Digitally-Controlled Multiplier/Divider
  • Portable Instrumentation (Battery-Powered)
  • Motor Feedback Loop Control.

For More technical Details please check MCP4921 Datasheet
