Product Images are shown for illustrative purposes only and may differ from actual product.

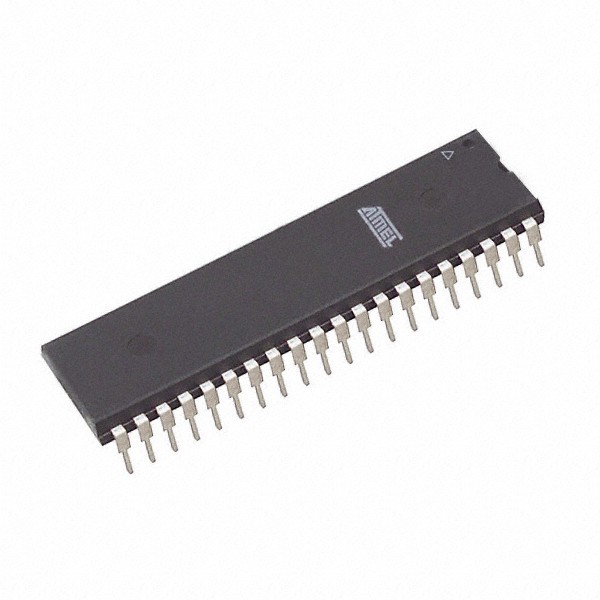

ATMEGA1284 AVR Microcontroller

Write a review | 1 reviews

Stock: 5

SKU: 0955 | DAA333

Rs. 1,050.20 (inc GST)
Rs.890.00 + GST

Qty :
Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

ATMEGA1284 AVR Microcontroller

The device operates between 1.8-5.5 volts.

The high-performance Atmel 8-bit AVR RISC-based microcontroller combines 128KB ISP flash memory with read-while-write capabilities, 4KB EEPROM, 16KB SRAM, 32 general purpose I/O lines, 32 general purpose working registers, a real time counter, three flexible timer/counters with compare modes and PWM, two USARTs, a byte oriented 2-wire serial interface, an 8-channel 10-bit A/D converter with optional differential input stage with programmable gain, programmable watchdog timer with internal oscillator, SPI serial port, a JTAG (IEEE 1149.1 compliant) test interface for on-chip debugging and programming, and six software selectable power saving modes.

Features of ATMEGA1284

40-pin AVR Microcontroller
Flash Program Memory : 128 kbytes
EEPROM Data Memory : 4 kbytes
SRAM Data Memory : 16 kbytes
I/O Pins : 32
Timers : Two 8-bit / Two 16-bit
A/D Converter : 10-bit Eight Channel
PWM : Six Channels
RTC : Yes with Separate Oscillator
MSSP : SPI and I²C Master and Slave Support
USART : Yes Two Channels
External Oscillator : up to 20MHz

Applications of ATMEGA1284

Clock & Timing;
Embedded Design & Development;
Imaging, Video & Vision;
Industrial;
Motor Drive & Control;
Multimedia;
Portable Devices;
Sensing & Instrumentation;
Wireless

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
