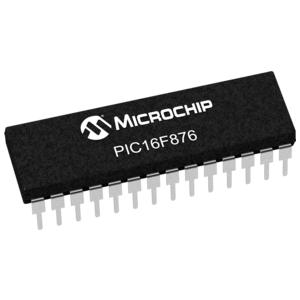

PIC16F876 Microcontroller

PIC16f876 Micro-controller from Microchip is a powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit micro-controller packs Microchip's powerful PIC® architecture into an 28-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX and PIC16C7X devices.

PIC16F876 features 256 bytes of EEPROM data memory, self programming, an ICD, 5 channels of 10-bit Analog-to-Digital (A/D) converter, 2 additional timers, 2 capture/compare/PWM functions, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and a Universal Asynchronous Receiver Transmitter (USART). All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.

Features of PIC16F876

• Program Memory Type: Flash

• Program Memory (KB): 14

• CPU Speed (MIPS): 5

• RAM Bytes: 368

• Data EEPROM (bytes): 256

• Timers: 2 x 8-bit, 1 x 16-bit

• ADC: 5 ch, 10-bit

• Temperature Range (C): -40 to 85

• Operating Voltage Range (V): 2 to 5.5

• Pin Count: 28
