Product Images are shown for illustrative purposes only and may differ from actual product.

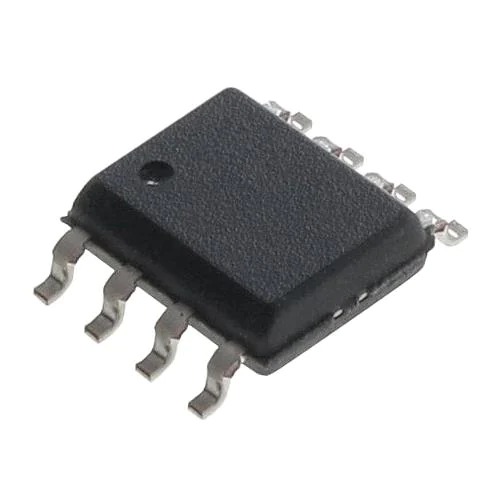

MP4560DN Step Down Switching Regulator IC

Write a review | 0 reviews

Stock: 10
Availability: InStock priceValidUntil: 2026-09-24
Brand: Monolothic Power Supply
SKU: 3756 | DAG006

Rs. 68.44 (inc GST)
Rs.58.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

MP4560DN-LFZ Step Down Converter IC

MP4560DN-LFZ Step Down Converter IC provides 2A output, 3.8 to 55V input range, and high efficiency up to 95%.

The MP4560DN-LFZ Step Down Converter IC is a high frequency switching regulator ideal for automotive and industrial applications. It operates within a wide input voltage range of 3.8 to 55 volts, delivering a maximum output of 2 amperes. This IC features a programmable switching frequency of up to 2MHz, ensuring efficient energy conversion and minimal EMI interference. Its 12µA shutdown mode is perfect for battery-powered applications.

Incorporating advanced features such as internal soft-start and thermal shutdown, the MP4560DN-LFZ Step Down Converter IC guarantees reliable performance in demanding environments. With an efficiency rating of up to 95%, it effectively reduces energy loss during operation, making it a suitable choice for high voltage power conversion and distributed power systems.

The MP4560DN-LFZ Step Down Converter IC is available in SOIC8 with an exposed pad package, which simplifies thermal management. Whether for automotive systems or industrial power systems, this IC meets diverse design requirements with ease.

Explore DNA's range of Voltage Regulators, including the reliable MP4560DN-LFZ Step Down Converter IC. Enhance your projects with high-performance components. Check other Voltage Regulators that we have in stock.

At DNA, we cater to Indian electronics buyers. If you cannot find specific components, reach out to us! We can import parts not in stock and support both retail and bulk orders. Consider our related items like HMI Display, Power Supply, Capacitor, DC to DC Converter IC, and Sensor Module. Contact Us

Features of MP4560DN-LFZ Step Down Converter IC

Wide 3.8 to 55 Volt Operating Input Range
Up to 2MHz Programmable Switching Frequency
140μA Quiescent Current
250mΩ Internal Power MOSFET
Ceramic Capacitor Stable
Internal Soft-Start
Up to 95% Efficiency
Output Adjustable from 0.8V to 52V

Specification of MP4560DN-LFZ Step Down Converter IC

Output Current: 2A
Input Voltage Range: 3.8V to 55V
Switching Frequency: 2MHz
Efficiency: Up to 95%
Package Type: SOIC8

Applications of MP4560DN-LFZ Step Down Converter IC

Automotive Systems
Industrial Power Systems
Distributed Power Systems
High Voltage Power Conversion
Battery Powered Systems

Package Includes

1 X MP4560DN Step Down Switching Regulator IC

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
