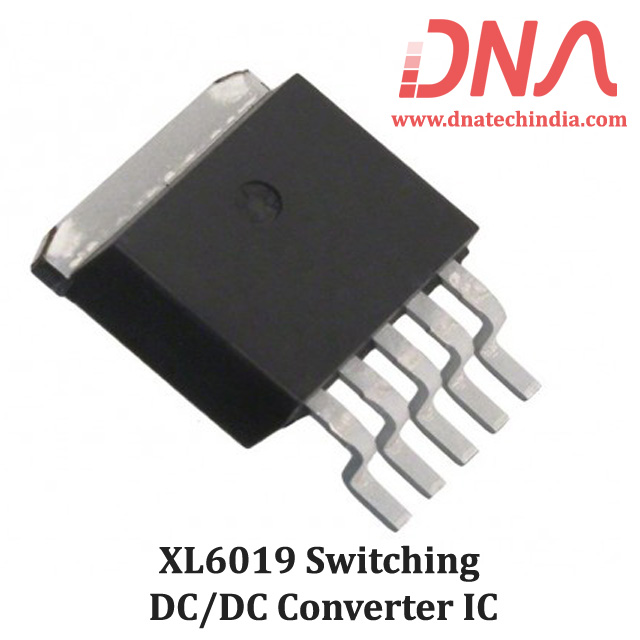

• XL6019 Switching DC to DC converter IC

Product Images are shown for illustrative purposes only and may differ from actual product.

XL6019 Switching DC to DC converter IC

  • Stock: 403
  • Brand: XL Semi
  • SKU: 1674 | DAB692
  • Rs. 57.82 (inc GST)
    Rs.49.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

XL6019 Step-up, Step-Down DC to DC Converter IC

180KHz 60V 5A Switching Current Boost / Buck-Boost / Inverting DC/DC Converter

XL6019 step down DC to DC converter is an upgraded version of XL6009. XL6019 automatic step-up as well as step-down Dc to Dc Adjustable Power Supply IC from XL Semi. We also have XL6019 DC to DC Boost Module in stock.

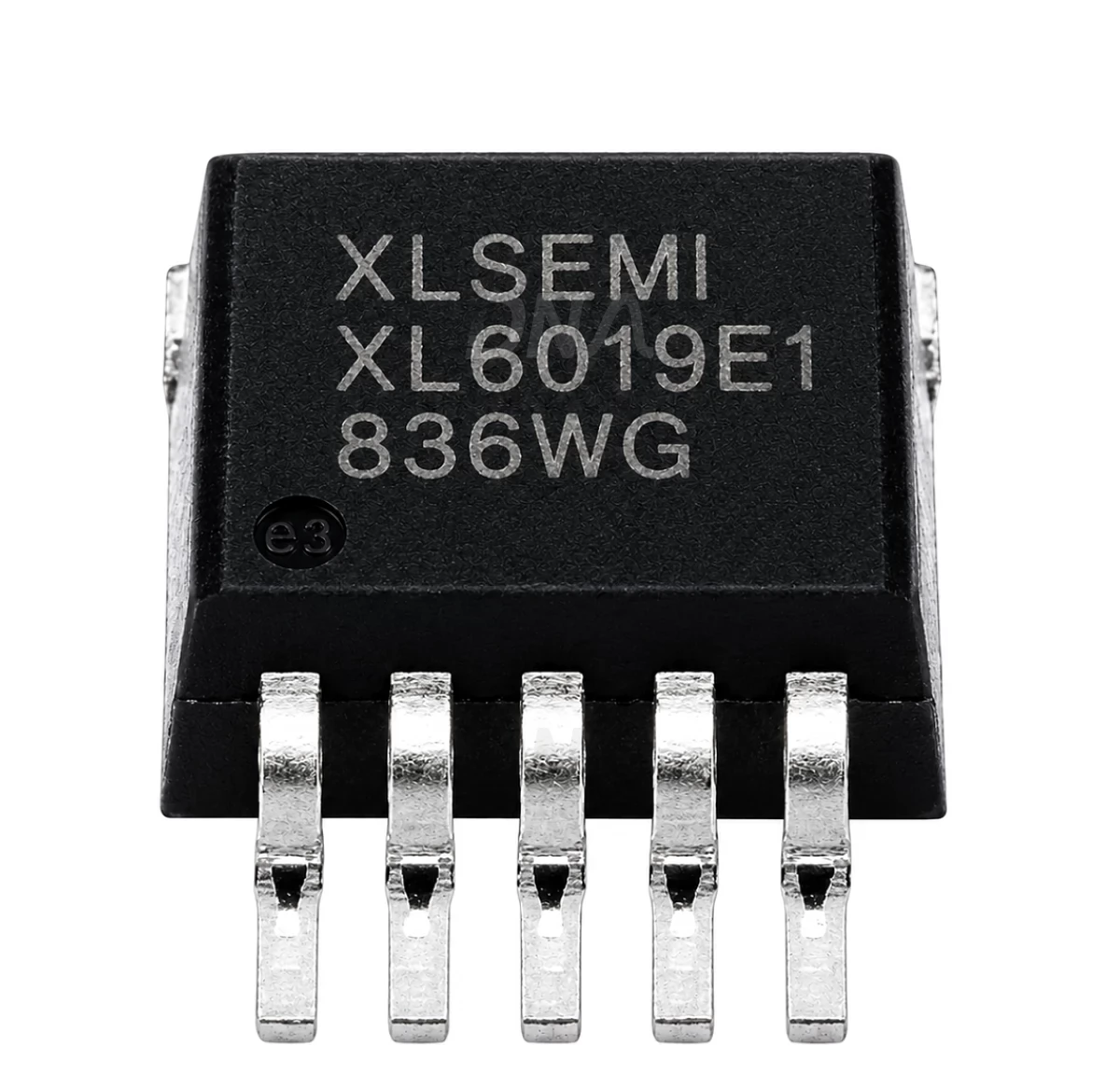

XL6019 Switching Regulator comes in TO263-5L package. The XL6019 regulator is a wide input range, current mode, DC/DC converter which is capable of generating either positive or negative output voltages. It can be configured as either a boost, flyback, SEPIC or inverting converter. The XL6019 built in N-channel power MOSFET and fixed frequency oscillator, current-mode architecture results in stable operation over a wide range of supply and output voltages. The XL6019 Buck-Boost DC to DC voltage regulator is special design for portable electronic equipment applications.

DNA Solutions has large collection of various types of Voltage Regulator IC's and DC to DC Switching IC. Check our complete collection of Voltage Regulator and Switching DC to DC IC

If you are in Nasik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of XL6019 Switching DC to DC converter IC

  • Wide 5 Volts to 40 Volts Input Voltage Range
  • Positive or Negative Output Voltage
  • Programming with a Single Feedback Pin
  • Current Mode Control Provides Excellent
  • Transient Response
  • 1.25 Volts reference adjustable version
  • Fixed 180KHz Switching Frequency
  • Maximum 5 Ampere Switching Current
  • SW PIN Built in Over Voltage Protection
  • Excellent line and load regulation
  • EN PIN TTL shutdown capability
  • Internal Optimize Power MOSFET
  • High efficiency up to 94%
  • Built in Frequency Compensation
  • Built in Soft-Start Function
  • Built in Thermal Shutdown Function
  • Built in Current Limit Function
  • Available in TO263-5L package

Applications of XL6019 DC to DC Converter IC

  • EPC / Notebook Car Adapter
  • Automotive and Industrial Boost / Buck-Boost / Inverting Converters
  • Portable Electronic Equipment

Related Links

Package Includes

  • 1 x XL6019 Switching DC to DC converter IC

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
