Product Images are shown for illustrative purposes only and may differ from actual product.

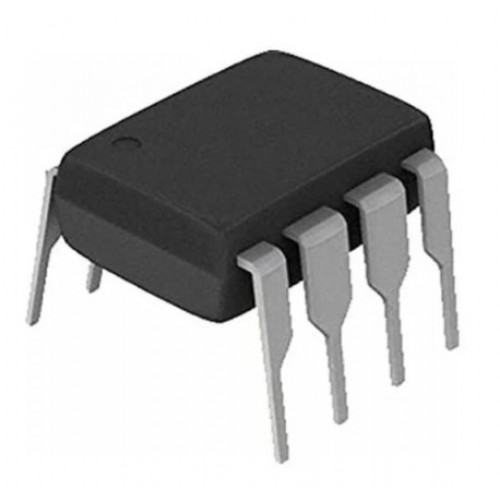

A3150 Gate Drive Optocoupler DIP IC
- Stock: Out Of Stock
- SKU: 9538 | DAI476
-
Rs. 221.25 (inc GST)
Rs.187.50 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
A3150 Gate Drive Optocoupler DIP IC
A3150 Gate Drive Optocoupler DIP IC
The A3150 is a high-speed gate drive optocoupler IC in an 8-pin DIP package, designed for isolated driving of power MOSFETs and IGBTs. It features high output current (±1.5A), fast switching, and excellent noise immunity. With an isolation voltage up to 5000Vrms, it ensures reliable signal transmission between high and low voltage domains. The device operates from a 10V to 30V supply and supports TTL-compatible input. It is ideal for applications like inverters, motor drives, and SMPS. Built-in protection features enhance system reliability.
DNA solutions, Nashik has various types of Optocoupler IC's. Check out our complete collection of Optocoupler IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of A3150 Gate Drive Optocoupler DIP IC
- High isolation voltage
- Fast switching speed with low propagation delay
- Compatible with TTL and CMOS logic levels
- Wide CTR range for consistent performance
- DIP packaging for easy PCB mounting
- Low input drive current
Specifications of A3150 Gate Drive Optocoupler DIP IC
- Isolation Voltage: 5000 Vrms
- Input LED Current: 5-20 mA
- Output Type: Phototransistor
- CTR Range: 50% to 600%
- Operating Temperature: -40°C to +100°C
Applications of A3150 Gate Drive Optocoupler DIP IC
- Motor control systems
- Inverter circuits
- Industrial automation
- Signal isolation in data acquisition systems
Package Includes
1 x A3150 Gate Drive Optocoupler DIP IC
