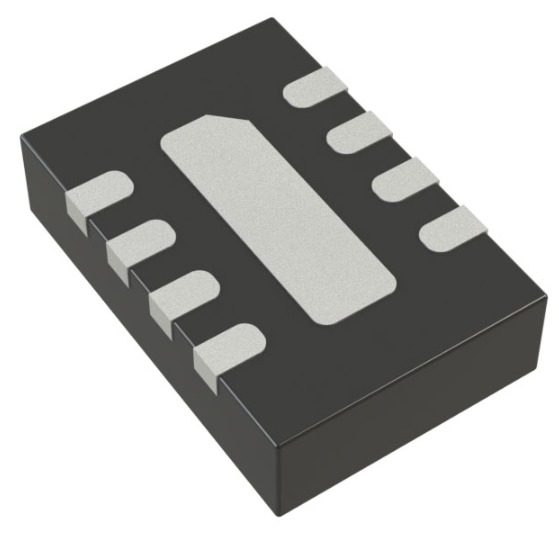

Product Images are shown for illustrative purposes only and may differ from actual product.

AD8317ACPZ-R7 Logarithmic Amplifier

Write a review | 2 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-02-25
SKU: 8054 | DAH181

Rs. 1,397.39 (inc GST)
Rs.1,184.23 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

AD8317ACPZ-R7 Logarithmic Amplifier

AD8317ACPZ-R7 Logarithmic Amplifier

The AD8317ACPZ-R7 is a high-speed, wide dynamic range logarithmic amplifier designed for use in RF and microwave signal chains. It operates over a broad frequency range and provides accurate RF signal power measurement. This device converts an RF input signal to a corresponding DC output voltage that is proportional to the logarithm of the input signal's amplitude, making it ideal for applications requiring power monitoring or signal leveling.

DNA solutions, Nashik has various types of Amplifier IC. Check out our complete collection of Amplifier IC.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of AD8317ACPZ-R7 Logarithmic Amplifier

Wide Frequency Range: Operates from 1 MHz to 10 GHz
Dynamic Range: Provides a typical dynamic range of 55 dB for input power measurement
Logarithmic Conformance: Accurate logarithmic response with a typical error of ±0.4 dB
Low Power Consumption: Consumes only 22 mW at 3 V supply
High Speed: Response time of 20 ns, suitable for fast signal processing applications
Single-Supply Operation: Operates on a supply voltage of 2.7 V to 5.5 V

Specifications of AD8317ACPZ-R7 Logarithmic Amplifier

Supply Voltage: 2.7 V to 5.5 V
Supply Current: 6.5 mA typical
Input Power Range: -60 dBm to 0 dBm
Minimum Frequency: 1 MHz
Maximum Frequency: 10 GHz
Logarithmic Slope: 22 mV/dB (nominal)
Logarithmic Intercept: -58 dBm (typical)
Output Voltage Range: 0.1 V to 1.4 V

Applications of AD8317ACPZ-R7 Logarithmic Amplifier

Power Measurement
Signal Monitoring
Automatic Gain Control (AGC)
VSWR Measurements

Package Includes

1 x AD8317ACPZ-R7 Logarithmic Amplifier

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
