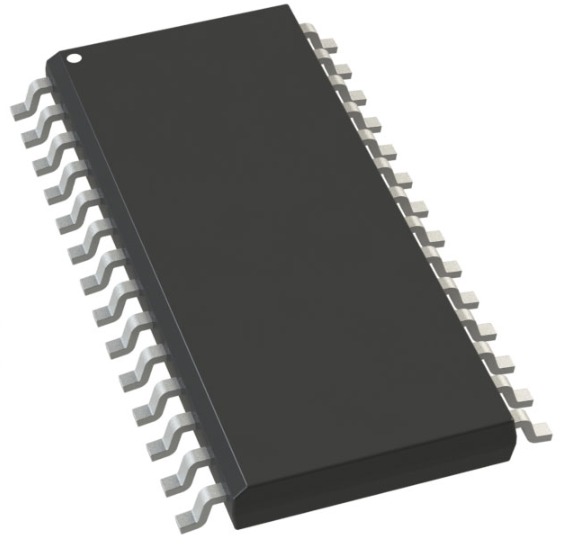

Product Images are shown for illustrative purposes only and may differ from actual product.

ADG5206BRUZ MUX 16:1 160OHM 28TSSOP IC

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-18

  • SKU: 7962 | DAH665

Availability: NotInStock priceValidUntil: 2026-12-18

  • Rs. 1,051.38 (inc GST)
    Rs.891.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

ADG5206BRUZ 16-Channel Multiplexer IC

ADG5206BRUZ 16:1 MUX IC with low on-state resistance of 160Ω and high ESD rating of 8kV.

The ADG5206BRUZ 16-Channel Multiplexer IC is designed for high voltage applications. It features a low on-state resistance of 160Ω, ensuring efficient signal transmission. The ADG5206BRUZ operates over a wide supply voltage range, making it adaptable for various configurations. With a high ESD rating of 8kV, this IC is robust against electrical surges, enhancing its reliability in demanding environments.
This 16-channel multiplexer is perfect for automatic test equipment, data acquisition systems, and instrumentation. Its fast switching times of 230ns for turn-on and 185ns for turn-off ensure it can handle high-frequency signals effectively. The ADG5206BRUZ operates within a temperature range of -40°C to +125°C, making it suitable for diverse applications.
For those in need of a reliable multiplexer, the ADG5206BRUZ 16-Channel Multiplexer IC is an excellent choice. It provides the necessary features for modern electronic designs while maintaining high performance and durability.
Explore the reliability of MISC ANALOG IC's from DNA solutions. The Analog Devices brand offers quality electronic components. Check other MISC ANALOG IC's that we have in stock.
If you are looking for additional electronic components, DNA is here to help. Reach out if you cannot find specific parts. We can also import items if they are not in stock. We support retail as well as bulk orders for products like Digital ICs, SMPS, Sensor Modules, IGBTs, MOSFETs, and Hongfa Relays. Contact Us

Features of ADG5206BRUZ 16-Channel Multiplexer IC

  • Latch-up proof design
  • Low on-state resistance of 160Ω
  • High ESD rating of 8kV
  • Wide supply voltage range from ±9V to ±22V
  • Fast switching times of 230ns (turn-on) and 185ns (turn-off)

Specification of ADG5206BRUZ 16-Channel Multiplexer IC

  • Number of Channels: 16:1 multiplexer configuration
  • On-State Resistance (Max): 160Ω
  • Switching Times (Max): 230ns turn-on, 185ns turn-off
  • Bandwidth (-3 dB): 65MHz
  • Package: 28-lead TSSOP
  • Operating Temperature Range: -40°C to +125°C

Applications of ADG5206BRUZ 16-Channel Multiplexer IC

  • Automatic test equipment
  • Data acquisition systems
  • Instrumentation
  • Avionics
  • Battery monitoring

Package Includes

  • 1 X ADG5206BRUZ 16-Channel Multiplexer IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
