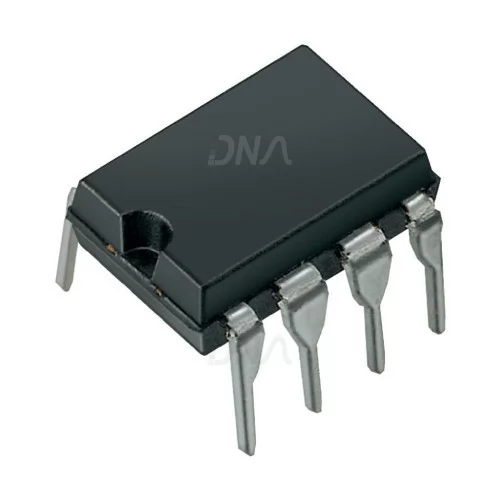

AD586 High Precision 5 Volt Reference

The AD586 represents a major advance in state-of-the-art monolithic voltage references. Using a proprietary ion-implanted buried Zener diode and laser wafer trimming of high stability thin-film resistors, the AD586 provides outstanding performance at low cost.

The AD586 offers much higher performance than most other 5 Volt references. Because the AD586 uses an industry-standard pinout, many systems can be upgraded instantly with the AD586.

The buried Zener approach to reference design provides lower noise and drift than band gap voltage references. The AD586 offers a noise reduction pin that can be used to further reduce the noise level generated by the buried Zener.

The AD586J, AD586K, AD586L, and AD586M are specified for operation from 0°C to 70°C; the AD586A and AD586B are specified for −40°C to +85°C operation; and the AD586S and AD586T are specified for −55°C to +125°C operation.

Features of AD586

• Laser trimmed to high accuracy

• 5.000 V ±2.0 mV (M grade)

• Trimmed temperature coefficient

               2 ppm/°C max, 0°C to 70°C (M grade)
               5 ppm/°C max, −40°C to +85°C (B and L grades)
               10 ppm/°C max, −55°C to +125°C (T grade)

• Low noise, 100 nV/√Hz

• Noise reduction capability

• Output trim capability

• MIL-STD-883-compliant versions available

• Industrial temperature range SOICs available

• Output capable of sourcing or sinking 10 mA
