  • SDH6983D Non Isolated LED Lighting IC

Product Images are shown for illustrative purposes only and may differ from actual product.

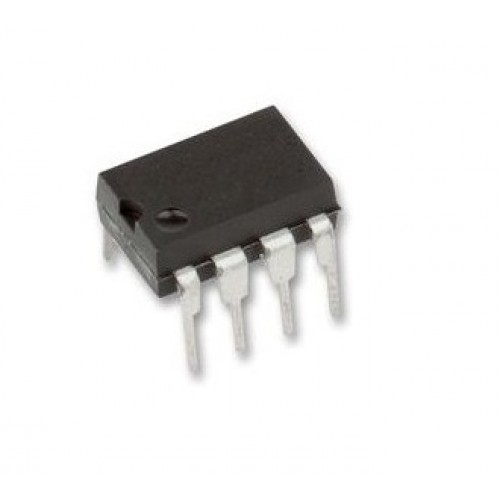

SDH6983D Non Isolated LED Lighting IC

  • Price :

    Rs.15.34 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

SDH6983D NON-ISOLATED LED LIGHTING DRIVE IC WITH BUILT-IN HIGH-VOLTAGE MOSFET,HIGH PFC AND HIGH CONSTANT CURRENT ACCURACY

SDH6983D is designed for non-isolated LED driving with floating Buck topology, built-in HV power MOSFET and depletion mode MOSFET are available. With this structure, inductor current is sensed and closed-loop is formed with the internal error amplifier for high constant current accuracy and high input/output regulation rate. Also, high PF in full range is available as its own PFC control. Boundary Conduction mode is adopted for decreasing switching loss and improving the conversion efficiency.

SDH6983D can realize high power factor without any external integral capacitor. Furthermore, SDH6983D has a built-in VCC regulator and a high-voltage power supply controller, which is able to supply power to VCC capacitor in a certain VCC range without any peripheral power supply or HV startup circuit, saving the system cost and area. SDH6983D integrates various protections, such as output open circuit protection, output short circuit protection, cycle-by-cycle over current protection, and over temperature protection. SDH6983D has ultra low start-up current and operating current, is able to high effectively drive highlight LED in full voltage input range.

FEATURES of SDH6983D LED Driver

  • Proprietary constant control method (Patent)
  • High power factor without any external compensation capacitor (Patent)
  • Built-in high-voltage power supply
  • Built-in VCC regulator
  • Built-in HV power MOSFET and depletion mode MOSFET
  • Constant current with high accuracy for LED (<±3%)
  • PF>0.9 in full voltage input range
  • Boundary-Conduction mode
  • LED short circuit protection
  • LED open circuit protection
  • VCC under voltage protection
  • Over temperature protection
  • Over current protection
  • Internal current reduction in high temperature condition
