Product Images are shown for illustrative purposes only and may differ from actual product.

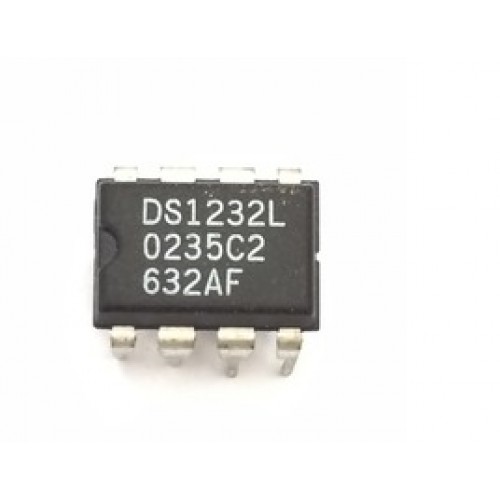

DS1232 MicroMonitor Chip
- Stock: Out Of Stock
- SKU: 778 | DAA386
-
Rs. 92.04 (inc GST)
Rs.78.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.

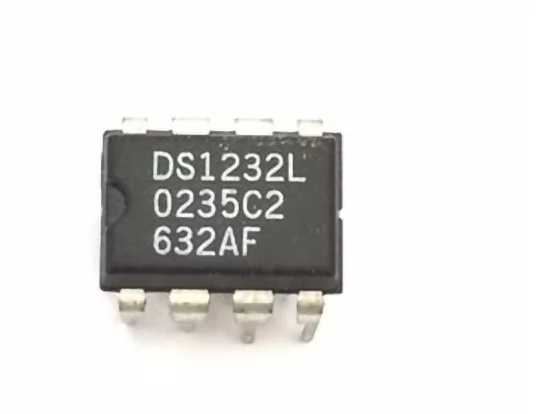

DS1232 MicroMonitor Chip
The DS1232LP/LPS Low Power MicroMonitor Chip monitors three vital conditions for a microprocessor: power supply, software execution, and external over-ride.
First, a precision temperature compensated reference and comparator circuit monitors the status of VCC. When an out-of-tolerance condition occurs, an internal power-fail signal is generated which forces reset to the active state. When VCC returns to an in-tolerance condition, the reset signals are kept in the active state for a minimum of 250 ms to allow the power supply and processor to stabilize.
The second function the DS1232LP/LPS performs is pushbutton reset control. The DS1232 debounces the push button input and guarantees an active reset pulse width of 250 ms minimum. The third function is a watchdog timer. The DS1232LP/LPS has an internal timer that forces the reset signals to the active state if the strobe input is not driven low prior to timeout. The watchdog timer function can be set to operate on timeout settings of approximately 150 ms, 600 ms, and 1.2 seconds.
Features of DS1232
Super-low power version of DS1232
50 µA quiescent current
Halts and restarts an out-of-control microprocessor
Automatically restarts microprocessor after power failure
Monitors pushbutton for external override
Accurate 5% or 10% microprocessor power supply monitoring
8-pin DIP, 8-pin SOIC or space saving µ-SOP package available
Optional 16-pin SOIC package available
Industrial temperature -40°C to +85°C available, designated N
