  • MCP42010 Digital Potentiometer

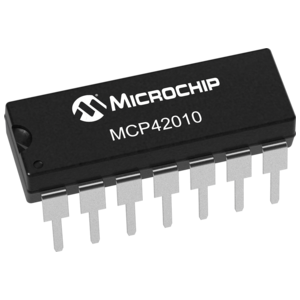

Product Images are shown for illustrative purposes only and may differ from actual product.

MCP42010 Digital Potentiometer

  • Product Code: 647
  • Availability: 2
  • Price :

    Rs.194.70 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

MCP42010 8-Bit Digital Potentiometer

The MCP42010 is a dual-channel, 8-bit digital potentiometer features 10kΩ end-to-end resistance value with an SPI serial interface. The wiper position varies linearly and is controlled via the SPI interface. The MCP42010 has outstanding AC and DC characteristics, and consumes <1 µA during static operation. Applications for the MCP42010 digital potentiometer include audio equipment (volume and tone controls), servo-motor control, battery charging and control, communications (line impedance matching), power supplies, instrumentation (gain, offset adjust), LCD contrast control and programmable filters. The MCP42010 is available in 8-pin PDIP and SOIC packages.


Features of MCP42010 8-Bit Digital Potentiometer

  • Two Resistor Networks

  • Potentiometer or Rheostat configuration options

  • Resistor Network Resolution

    • 8-bit: 255 Resistors (256 Steps)

  • RAB Resistances options of:

    • 10kΩ

  • Zero-Scale to Full-Scale Wiper operation

  • INL: 1LSB (max)

  • DNL: 1LSB (max)

  • SPI Compatible Serial interface

  • Standby current: 1uA (max)

  • Wide Operating Voltage: 2.7V to 5.5V

  • Wide Bandwidth (-3dB) Operation: 1 MHz (typ.)

  • Extended temperature range: -40°C to +125°C
