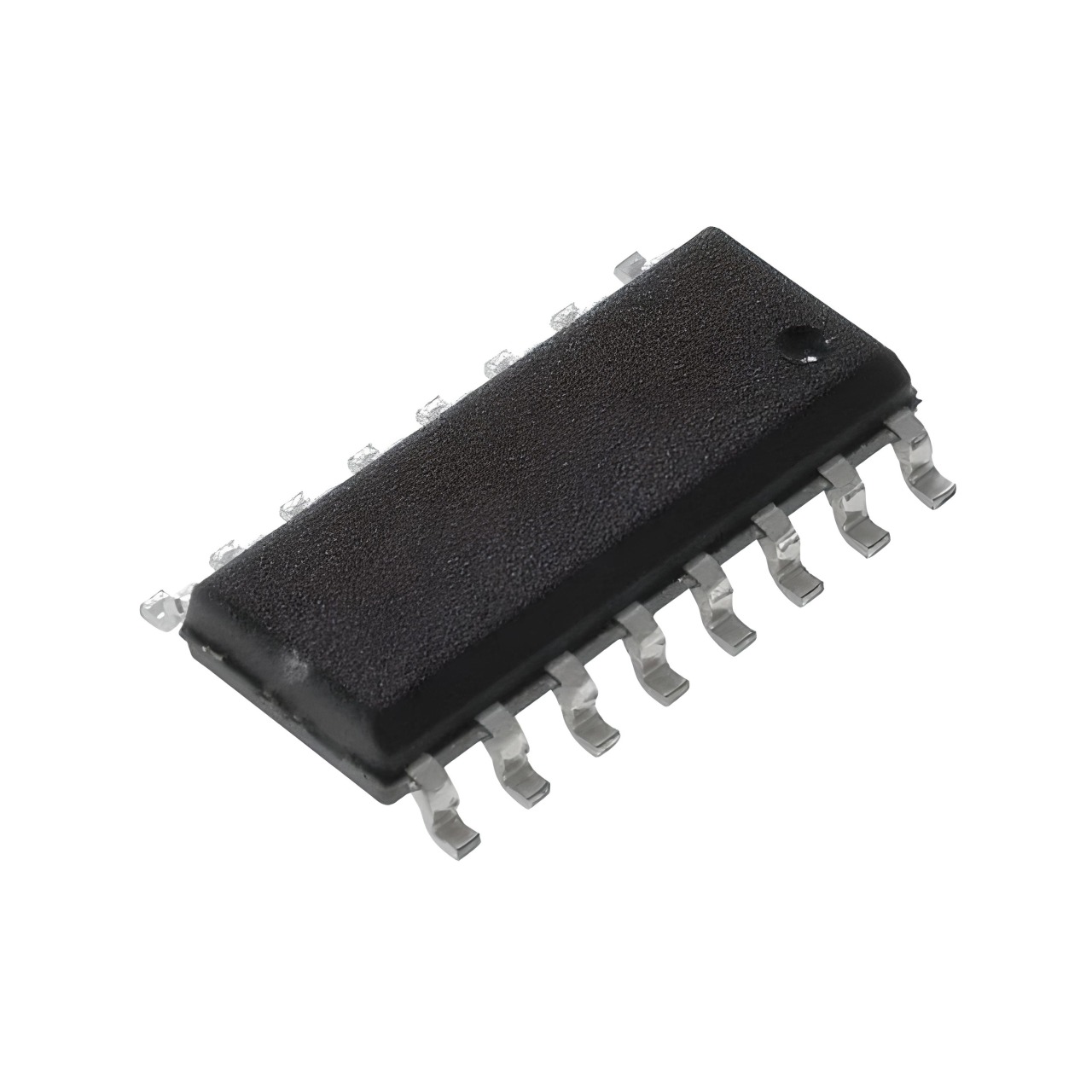

Product Images are shown for illustrative purposes only and may differ from actual product.

TM1650 LED driver control and keyboard scanning IC

Write a review | 0 reviews

Stock: 4
Availability: InStock priceValidUntil: 2026-11-24
Brand: Titan Micro
SKU: 3772 | DAF739

Rs. 22.42 (inc GST)
Rs.19.00 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

TM1650 LED Driver Control and Keyboard Scanning IC

TM1650 LED Driver for keyboard scanning with 8-level brightness control and 25mA drive current.

The TM1650 LED Driver Control and Keyboard Scanning IC is designed for efficient LED management and keyboard scanning applications. It features a high-speed two-wire serial interface and can drive currents greater than 25mA, ensuring bright displays. With 8-level brightness control, this component is versatile for various applications, including air conditioning and household electronics.

The TM1650 integrates an MCU input-output control interface, a data latch, and keyboard scanning capabilities. It operates on a power supply voltage of 2.8V to 5.5V and supports two display modes, making it suitable for different display requirements. Its built-in clock oscillation and power-on reset circuits enhance reliability for long-term use.

For projects requiring robust performance, the TM1650 LED Driver stands out in the Components & IC's category. Its applications range from set-top boxes to DVD players, making it a must-have for electronics enthusiasts and professionals alike.

Explore the best in Components & IC's at DNA. The TM1650 from a trusted manufacturer is perfect for your electronic projects. Browse our extensive collection for more options. Check other Components & IC's that we have in stock.

If you are an electronics buyer in India and need specific parts, we can help. We can import components if they are not available. Explore our range including Inductors, Digital ICs, MOSFETs, and more. Contact Us.

Features of TM1650 LED Driver Control and Keyboard Scanning IC

High-speed two-wire serial interface
Segment drive current greater than 25mA
8-level brightness control
Supports DIP16 and SOP16 packages
Operates at 2.8V-5.5V power supply voltage
Two display modes available
Built-in clock oscillation circuit
Integrated power-on reset circuit

Specification of TM1650 LED Driver Control and Keyboard Scanning IC

Drive current > 25mA
Power supply voltage 2.8V-5.5V
Supports 8-segment × 4 digits and 7-segment × 4 digits display modes

Applications of TM1650 LED Driver Control and Keyboard Scanning IC

Air conditioning
Household products
Set-Top boxes
DVD/VCD players
Display applications

Package Includes

1 X TM1650 LED driver control and keyboard scanning IC

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
