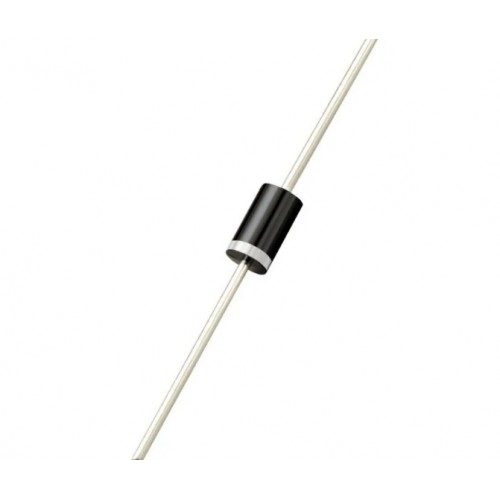

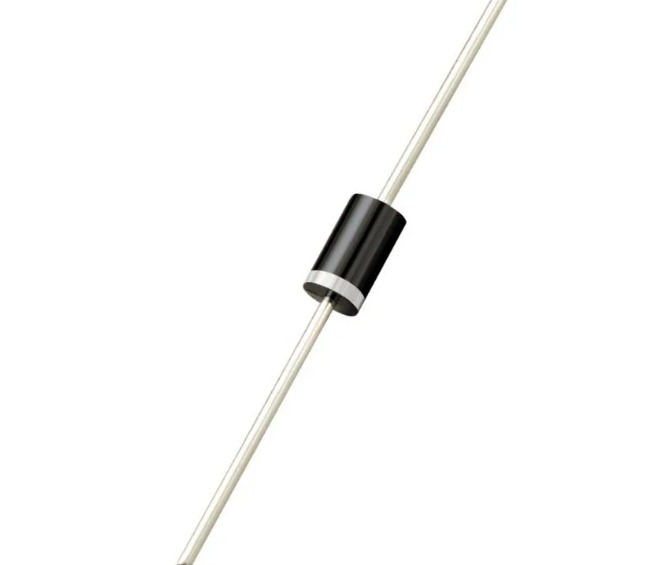

HER508 HIGH EFFICIENCY RECTIFIER DIODE

HER508 High Efficiency Rectifier Diode

HER508 High Efficiency Rectifier Diode; Fast recovery, low voltage drop; 1000V reverse voltage.

The HER508 High Efficiency Rectifier Diode is designed for reliable high-speed switching applications. It boasts a high surge current capability, making it ideal for capacitor charging and inverter circuits. With a fast recovery time of 50ns, this diode minimizes power loss in high-frequency operations, ensuring efficiency in power supply rectification. The HER508 also features a low forward voltage drop, enhancing overall performance in demanding environments.

This diode is suitable for a variety of applications including freewheeling diodes in motor drives and voltage clamping circuits. Its robust construction allows it to withstand significant reverse voltage levels, ensuring reliability under harsh conditions. The HER508 is an essential component for anyone looking to enhance their electronic projects with high-performance rectification.

For Indian customers, the HER508 High Efficiency Rectifier Diode offers a dependable solution for various electronic circuits. Explore the advantages of the HER508 and elevate your designs with its superior features.

Explore the range of Diodes & Transistors at DNA. The HER508 from our inventory is a crucial component for efficient power management. Check other Diodes & Transistors that we have in stock.

At DNA, we cater to all your electronic component needs. If you're looking for specific parts like DC to DC Converter Modules or Analog ICs, reach out to us. We can import items if they're not available and support you in both retail and bulk orders. Contact Us.

Features of HER508 High Efficiency Rectifier Diode

• High Surge Current Capability
• Fast Recovery Time
• High Efficiency
• Low Forward Voltage Drop
• High Reverse Voltage Tolerance

Specification of HER508 High Efficiency Rectifier Diode

• Maximum Repetitive Reverse Voltage: 1000V
• Average Forward Rectified Current: 5A
• Peak Forward Surge Current: 150A (8.3ms half sine wave)
• Maximum Forward Voltage Drop: 1.7V at 5A
• Reverse Recovery Time: 50ns (typical)
• Operating Junction Temperature: -55°C to +150°C
• Storage Temperature: -55°C to +150°C
• Package Type: DO-201AD

Applications of HER508 High Efficiency Rectifier Diode

• High-Speed Switching Circuits
• Power Supply Rectification
• Freewheeling Diode in Motor Drives
• Voltage Clamping and Snubber Circuits
• Inverters and Converters

Package Includes

• 1 X HER508 High Efficiency Rectifier Diode
