Product Images are shown for illustrative purposes only and may differ from actual product.

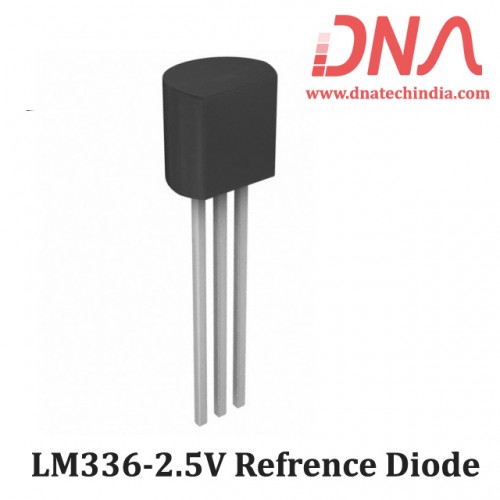

LM336-2.5V Refrence Diode

Write a review | 2 reviews

Stock: 79
Availability: InStock priceValidUntil: 2026-10-08
Brand: Generic
SKU: 585 | DAA074

Rs. 12.98 (inc GST)
Rs.11.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

LM336-2.5V Precision Reference Diode

LM336-2.5V Shunt Regulator Diode + Low temperature coefficient + 0.2 Ω dynamic impedance.

The LM336-2.5V Precision Reference Diode delivers a stable 2.5V output, making it ideal for digital voltmeters and power supplies. This diode features a low temperature coefficient and operates effectively within a temperature range of 0˚C to +70˚C. With a wide operating current of 400 µA to 10 mA, the LM336-2.5V ensures reliability in various applications.

Designed for easy trimming, this diode allows users to minimize temperature drift, ensuring accurate voltage reference across different environments. The LM336-2.5V is perfect for both positive and negative voltage references, adding versatility to your circuit designs. Its 0.2 Ω dynamic impedance further enhances performance, making it a preferred choice for engineers.

Explore the benefits of the LM336-2.5V Precision Reference Diode in your projects. This component is essential for applications requiring precision voltage reference, ensuring stable operation in electronic devices. Discover how this diode can enhance your circuit designs today.

At DNA, we provide high-quality electronic components like the LM336-2.5V Precision Reference Diode from trusted manufacturers. Explore our range of Diodes & Transistors for all your electronic needs. Check other "Diodes & Transistors" that we have in stock.

Are you searching for specific electronic components? At DNA, we support Indian electronics buyers with a wide range of products. If you need help finding parts like Digital ICs, Transistors, or Microcontrollers, just reach out. We can also import items not in stock. Contact Us

Features of LM336-2.5V Precision Reference Diode

Low temperature coefficient
Wide operating current of 400 µA to 10 mA
0.2 Ω dynamic impedance
±1% initial tolerance available
Guaranteed temperature stability
Easily trimmed for minimum temperature drift
Fast turn-on

Specification of LM336-2.5V Precision Reference Diode

Temperature range: 0˚C to +70˚C
Voltage reference: 2.5V
Dynamic impedance: 0.2 Ω
Initial tolerance: ±1%
Operating current: 400 µA to 10 mA

Applications of LM336-2.5V Precision Reference Diode

Digital voltmeters
Power supplies
Op amp circuitry
Voltage reference circuits
Electronic measurement devices

Package Includes

1 X LM336-2.5V Precision Reference Diode

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
