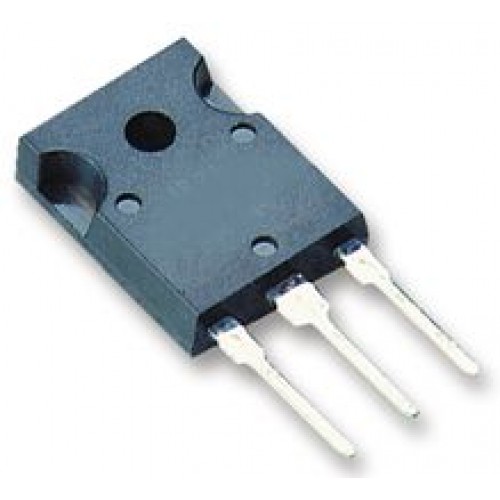

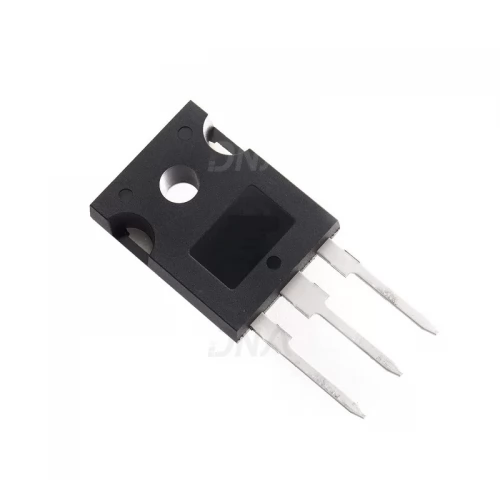

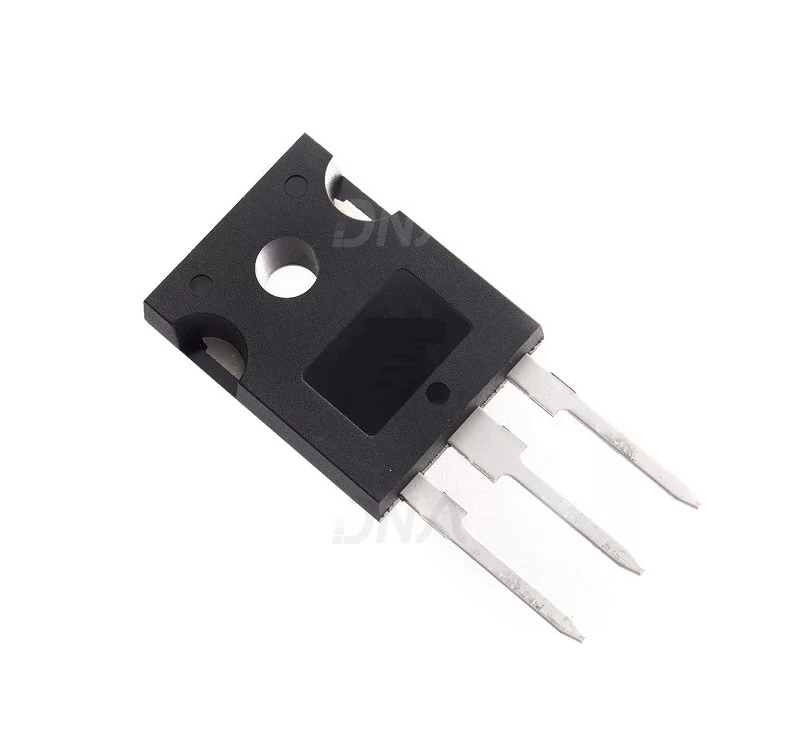

Product Images are shown for illustrative purposes only and may differ from actual product.

TIP147 Darlington Silicon Power Transistors

Write a review | 2 reviews

Stock: 45
Availability: InStock priceValidUntil: 2026-11-28
SKU: 683 | DAA209

Rs. 64.90 (inc GST)
Rs.55.00 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

TIP147 Darlington Silicon Power Transistor

TIP147 transistor for general-purpose amplification with high gain, 100V Collector-Emitter voltage, and 125W power dissipation.

The TIP147 Darlington Silicon Power Transistor is ideal for general-purpose amplification and low frequency switching applications. This transistor features a high DC current gain of a minimum hFE of 1000 at an IC of 5.0 A and VCE of 4 V. With a collector-emitter sustaining voltage of 100V, it ensures reliable performance in various electronic circuits.

Designed with monolithic construction, the TIP147 includes a built-in base-emitter shunt resistor, making it convenient for integration into your designs. Its temperature range of -65 to +150°C ensures stability across diverse operating conditions. Whether you are designing power amplifiers or switching applications, this transistor meets your needs effectively.

Choose the TIP147 Darlington Silicon Power Transistor for your projects to achieve optimal results in amplifier circuits and switching applications. This component is Pb-free, supporting your efforts in eco-friendly electronics.

Explore the reliability of Diodes & Transistors at DNA. Discover the TIP147 from a trusted brand in the Diodes & Transistors category. Check other Diodes & Transistors that we have in stock.

If you are searching for specific electronic components, reach out to us. We can import any part that is not available and support your needs in retail as well as bulk. Check out our selection of Digital ICs, Sensors, HMI Displays, Analog ICs, Super Capacitors, and Humidity & Temperature Sensors. Contact Us.

Features of TIP147 Darlington Silicon Power Transistor

High DC Current Gain
Collector-Emitter Sustaining Voltage 100V
Monolithic Construction with Shunt Resistor
Pb-Free Device
Wide Temperature Range -65 to +150°C

Specification of TIP147 Darlington Silicon Power Transistor

Collector-Emitter Voltage VCEO 100 Vdc
Collector-Base Voltage VCB 100 Vdc
Emitter-Base Voltage VEB 5.0 Vdc
Base Current Continuous IB 0.5 Adc
Total Power Dissipation @ TC = 25°C PD 125W

Applications of TIP147 Darlington Silicon Power Transistor

General-purpose amplification
Low frequency switching applications
Power amplifier circuits
Signal processing
Electronic control systems

Package Includes

1 X TIP147 Darlington Silicon Power Transistor

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
