  • Semikron SKM100GB063D IGBT Module

Product Images are shown for illustrative purposes only and may differ from actual product.

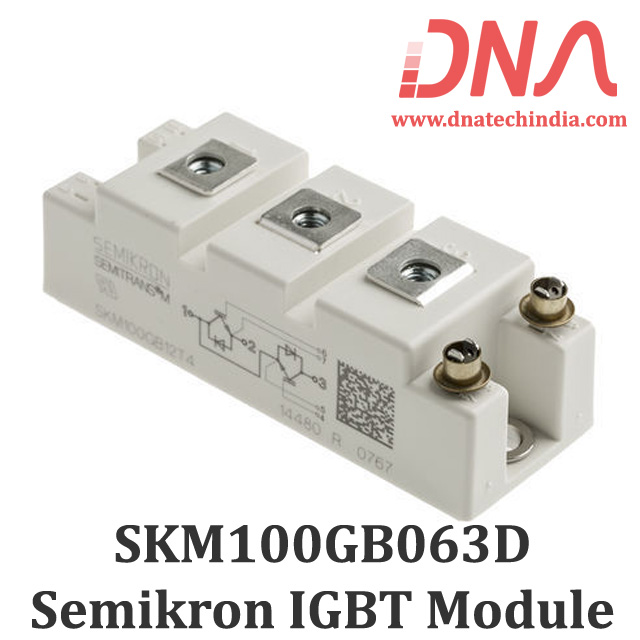

Semikron SKM100GB063D IGBT Module

  • Stock: 1
  • Brand: Semikron
  • SKU: 3017 | DAE774
  • Rs. 2,257.34 (inc GST)
    Rs.1,913.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

Semikron SKM100GB063D IGBT Module

Semikron SKM 100GB063D Suprefast NPT IGBT Module

SKM100GB063D is an Superfast NPT N-Channel IGBT Module from Semikron. The SKM100GB063D IGBT comes in SEMITRANS Package.

IGBT (Insulated Gate Bipolar Transistor) module is a device required in many types of industrial equipment, and are used in high currents and high voltage applications. IGBT power module is a preferred device for high power applications due to its ability to enhance switching, temperature, weight and cost performance.

DNA solutions has various types of Semikron IGBT Modules. Check out our complete collection of IGBT Modules, Thyristor & Diode modules.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of SKM100GB063D IGBT Module

  • N channel, homogeneous Silicon structure (NPT- Non punch through IGBT)
  • Low tail current with low temperature dependence
  • High short circuit capability, self limiting if term. G is clamped to E
  • Pos. temp.-coeff. of VCEsat
  • Very low Cies, Coes, Cres
  • Latch-up free
  • Fast & soft inverse CAL diodes
  • Isolated copper Bonding Technology without hard mould
  • Large clearance (10 mm) and creepage distances (20 mm)

Specifications of SKM100GB063D IGBT Module

  • Vces: 600 VOlts
  • Ic: 100 Ampere
  • Icrm: 200 Ampere
  • Vges: 20V
  • Tpsc: 10us
  • Dimensions: 94x34x30 mm
  • Technology: NPT IGBT (Standard)

Applications of SKM100GB063D IGBT Module

  • Switching (not for linear use)
  • Switched mode power supplies
  • UPS
  • Three phase inverters for servo / AC motor speed control
  • Pulse frequencies also above 10 kHz

Package Includes

1 x Semikron SKM 100GB063D IGBT Module
