  • INA114 Instrumentation Amplifier

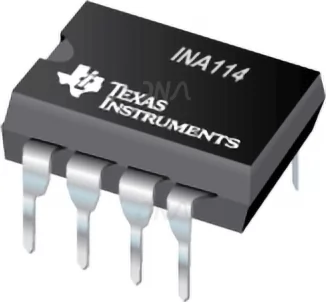

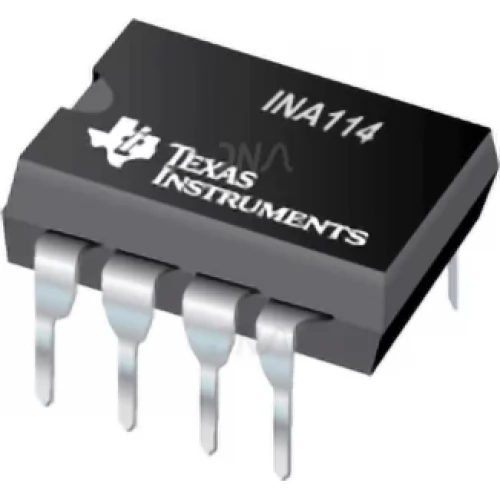

Product Images are shown for illustrative purposes only and may differ from actual product.

INA114 Instrumentation Amplifier

  • Stock: Out Of Stock
  • SKU: 0843 | DAA426
  • Rs. 660.80 (inc GST)
    Rs.560.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

INA114 Instrumentation Amplifier

The INA114 is a low cost, general purpose instrumentation amplifier offering excellent accuracy.

Its versatile 3-op amp design and small size make it ideal for a wide range of applications. A single external resistor sets any gain from 1 to 10,000. Internal input protection can withstand up to ±40V without damage.

The INA114 is laser trimmed for very low offset voltage (50µV), drift (0.25µV/°C) and high common-mode rejection (115dB at G = 1000). It operates with power supplies as low as ±2.25V, allowing use in battery operated and single 5V supply systems. Quiescent current is 3mA maximum. INA114 Instrumentation Amplifier is available in 8-pin plastic and SOL-16 surface-mount packages. Both are specified for the –40°C to +85°C temperature range.

Features of INA114

  • LOW OFFSET VOLTAGE : 50µV max

  • LOW DRIFT : 0.25µV/°C max

  • LOW INPUT BIAS CURRENT : 2nA max

  • HIGH COMMON-MODE REJECTION : 115dB min

  • INPUT OVER-VOLTAGE PROTECTION : ±40V

  • WIDE SUPPLY RANGE : ±2.25 to ±18V

  • LOW QUIESCENT CURRENT : 3mA max

  • 8-PIN PLASTIC AND SOL-16

Applications of INA114

  • BRIDGE AMPLIFIER

  • THERMOCOUPLE AMPLIFIER

  • RTD SENSOR AMPLIFIER

  • MEDICAL INSTRUMENTATION

  • DATA ACQUISITION
