  • IR2111 Half Bridge Driver

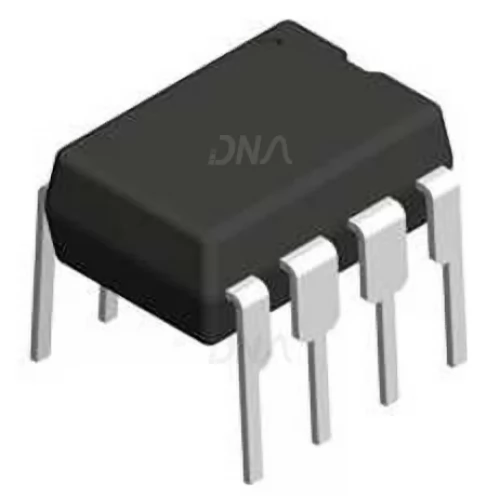

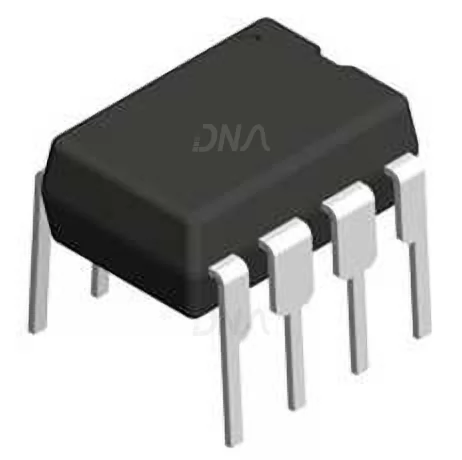

Product Images are shown for illustrative purposes only and may differ from actual product.

IR2111 Half Bridge Driver

  • Stock: 2
  • SKU: 0631 | DAA151
  • Rs. 165.20 (inc GST)
    Rs.140.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

IR2111 Half Bridge Driver

The IR2111 Half Bridge Driver is a high voltage, high speed power MOSFET and IGBT driver with dependent high and low side referenced output channels designed for half bridge applications.

Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic input of IR2111 Half Bridge Driver is compatible with standard CMOS outputs. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Internal dead time is provided to avoid shoot-through in the output half-bridge. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600 volts.

Features of IR2111 Half Bridge Driver

  • Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immun

  • Gate drive supply range from 10 to 20V

  • Under voltage lockout for both channels

  • CMOS Schmitt-triggered inputs with pull-down

  • Matched propagation delay for both channels

  • Internally set dead time

  • High side output in phase with input
