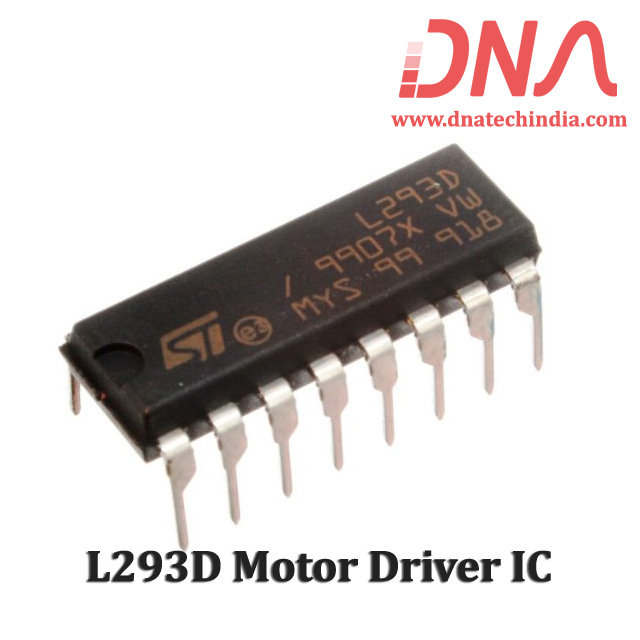

L293D Motor Driver IC


Write a review | 4 reviews

  • Stock: 5

    Availability: InStock priceValidUntil: 2026-04-13

  • SKU: 19 | DAA479

Availability: InStock priceValidUntil: 2026-04-13

  • Rs. 24.54 (inc GST)
    Rs.20.80 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

L293D H-Bridge Motor Driver IC

L293D is a quadruple high current half H bridge Motor Driver IC for Stepper and DC motor.

The L293 and L293D devices are quadruple high current half-H drivers. The L293 is designed to provide bidirectional drive currents of up to 1 A at voltages from 4.5 V to 36 V. The L293D is designed to provide bidirectional drive currents of up to 600mA at voltages from 4.5 V to 36 V.

L293d motor Driver is designed to drive inductive loads such as relays, solenoids, DC and bipolar stepping motors, as well as other high-current/high-voltage loads in positive supply applications.

Each output is a complete totem-pole drive circuit,with a Darlington transistor sink and a pseudo Darlington source. Drivers are enabled in pairs, with drivers 1 and 2 enabled by 1,2 EN and drivers 3 and 4 enabled by 3,4 EN.

We have large collection of various types of Motor Driver IC's and Motor Driver Modules. Check our complete collection of Motor Driver IC's and motor driver Modules.

Features of L293D Motor Driver IC

  • 600mA OUTPUT CURRENT CAPABILITY
  • PER CHANNEL
  • 1.2 Ampere PEAK OUTPUT CURRENT (non repetitive) PER CHANNEL
  • ENABLE FACILITY
  • OVER TEMPERATURE PROTECTION
  • LOGICAL ”0” INPUT VOLTAGE UP TO 1.5 V (HIGH NOISE IMMUNITY)
  • INTERNAL CLAMP DIODES

Application of L293D Motor Driver IC

  • Stepper Motor Driver
  • DC Motor Driver
  • Latching Relay Driver

Related Links

Related Videos

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
