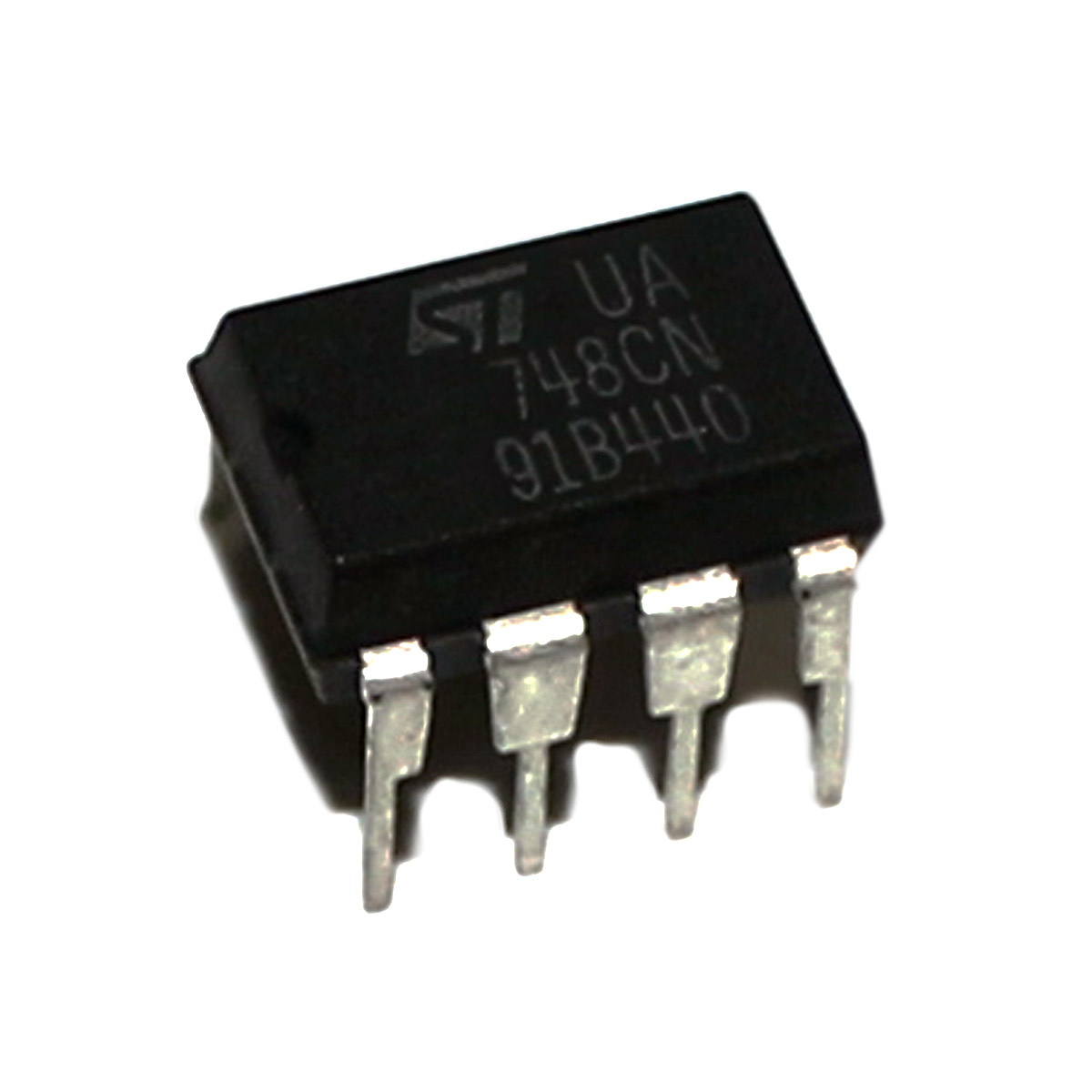

LM748 Op-Amp General Purpose Operational Amplifier

LM748 Op-Amp for general purpose use with frequency compensation, ±5V to ±20V operation, and short-circuit protection.

The LM748 Op-Amp is a versatile operational amplifier designed for general purpose applications. It features external frequency compensation, ensuring stability across all feedback configurations, even with capacitive loads. With a voltage range of ±5V to ±20V, the LM748 Op-Amp is suitable for various electronic projects and can be optimized for high frequency performance. Its ability to function as a comparator and handle differential inputs up to ±30V makes it a reliable choice for logic circuits.

Engineered for safety, the LM748 Op-Amp includes continuous short-circuit protection and avoids latch-up when exceeding common range limits. Operating effectively within a temperature range of 0°C to +70°C, this op-amp is ideal for both commercial and educational electronics applications. Explore the capabilities of the LM748 Op-Amp in your next design.

Whether you're working on amplifying signals or creating comparators, the LM748 Op-Amp provides the performance you need. Its common pin configuration with the LM101 makes it easy to integrate into existing designs. Discover how this op-amp can enhance your electronic projects.

Explore the reliability of the LM748 Op-Amp from a trusted Manufacturer at DNA. This OPAMP is perfect for various applications. Check other OPAMP that we have in stock.

If you cannot find certain electronic parts, reach out to us. We can import components and support you in retail as well as bulk orders. Explore related items like SMPS, Super Capacitor, Microcontroller, and more. Contact Us.

Features of LM748 Op-Amp

• External frequency compensation
• Operates from ±5V to ±20V
• Continuous short-circuit protection
• Functions as a comparator
• Compatible with logic circuits

Specification of LM748 Op-Amp

• Temperature range: 0°C to +70°C
• Input differential voltage: ±30V
• Unity-gain compensation
• Pin configuration compatible with LM101

Applications of LM748 Op-Amp

• Signal amplification
• Comparator circuits
• Logic circuit compatibility
• Educational electronics projects
• General purpose amplification

Related Links for LM748 Op-Amp General Purpose Operational Amplifier

• Other Products from OPAMP Category

Package Includes

• 1 X LM748 Op-Amp General Purpose Operational Amplifier
