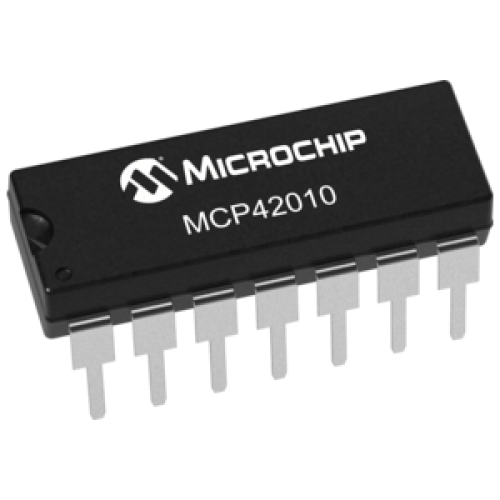

MCP42010 Digital Potentiometer

MCP42010 Digital Potentiometer 8-Bit Dual-Channel

MCP42010 Digital Potentiometer for audio control, 10kΩ resistance, and SPI interface.

The MCP42010 Digital Potentiometer is a reliable 8-bit dual-channel device, ideal for applications like audio equipment and servo-motor control. It offers a 10kΩ resistance value with a linear wiper position controlled via an SPI interface. With a low standby current of less than 1 µA, it suits energy-sensitive applications. Its wide operating voltage of 2.7V to 5.5V and extended temperature range of -40°C to +125°C make it versatile for various environments.

Engineered for precise control, the MCP42010 Digital Potentiometer features two resistor networks and can easily switch between potentiometer and rheostat configurations. It supports 256 steps for accurate adjustments, making it perfect for tasks like volume control, tone adjustments, and LCD contrast. Its high bandwidth operation up to 1 MHz ensures reliable performance across different applications.

Whether you are designing communication devices or power supplies, the MCP42010 Digital Potentiometer stands out for its outstanding AC and DC characteristics. Explore its capabilities for programmable filters and instrumentation adjustments, making it an essential component for modern electronic designs.

Explore the precision of the MCP42010 Digital Potentiometer at DNA. This versatile component enhances your electronic projects. Check other Potentiometer that we have in stock.

If you are searching for specific electronic parts, DNA can assist you. We can import components if they are not available. Check our range of related items like MOSFET, Diode, Digital IC, and more. Contact Us.

Features of MCP42010 Digital Potentiometer

• Dual-channel operation
• 8-bit resolution
• SPI compatible interface
• Low standby current
• Wide operating voltage range
• Extended temperature range
• High bandwidth operation

Specification of MCP42010 Digital Potentiometer

• End-to-end resistance: 10kΩ
• INL: 1LSB (max)
• DNL: 1LSB (max)
• Operating voltage: 2.7V to 5.5V
• Bandwidth: 1 MHz (typ.)
• Temperature range: -40°C to +125°C

Applications of MCP42010 Digital Potentiometer

• Audio equipment
• Servo-motor control
• Battery charging
• Communications
• Power supplies
• Instrumentation
• LCD contrast control

Related Links for MCP42010 Digital Potentiometer 8-Bit Dual-Channel

• Other Products from Potentiometer Category

Package Includes

• 1 X MCP42010 Digital Potentiometer
