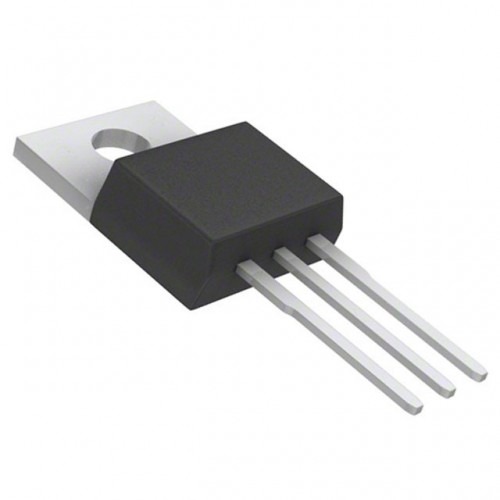

FTP03N03N N-Channel Power MOSFET Transistor
- Stock: 50 InStock
- SKU: 7623 | DAH447
-
Rs.
70.80 (inc GST)
Rs.60.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
FTP03N03N N-Channel Power MOSFET Transistor
FTP0303N N-Channel Power MOSFET Transistor
The FTP03N03N is an N-Channel Power MOSFET designed for low-voltage, high-efficiency switching applications. The FTP03N03N provides an optimal combination of low on-resistance, high current capacity, and fast switching, making it ideal for demanding power management tasks.
DNA solutions, Nashik has various types of MOSFET's. Check out our complete collection of MOSFET's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of FTP03N03N N-Channel Power MOSFET Transistor
- Static drain-source on-resistance :RDS(on)≤3mΩ·
- Enhancement mode·
- Fast Switching Speed·
- 100% avalanche tested·
- Minimum Lot-to-Lot variations for robust device performance and reliable operation
Specifications of FTP03N03N N-Channel Power MOSFET Transistor
- Drain-Source Voltage (V<sub>DSS</sub>): 60V
- Gate Threshold Voltage (V<sub>GS(th)</sub>): Typically 2V - 4V
- Drain Current (I<sub>D</sub>): Up to 30A (continuous)
- On-Resistance (R<sub>DS(on)</sub>): Low, typically around 0.006Ω at V<sub>GS</sub> = 10V
- Gate Charge (Q<sub>g</sub>): Low gate charge for fast switching
Package Includes
- 1 x FTP03N03N N-Channel Power MOSFET Transistor
