  • P80NF55 Power MOSFET

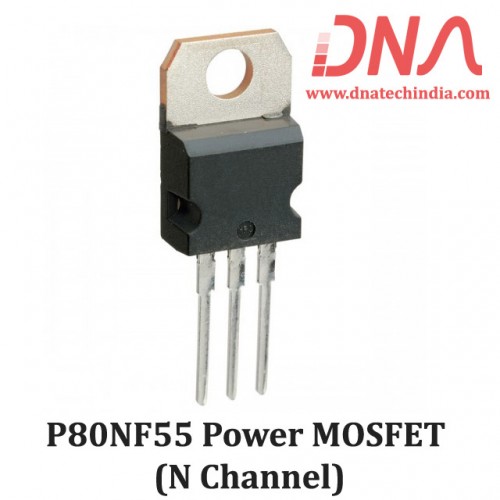

Product Images are shown for illustrative purposes only and may differ from actual product.

P80NF55 Power MOSFET

  • Product Code: 719
  • Availability: 2
  • Price :

    Rs.33.04 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

P80NF55 Power MOSFET

P80NF55 Power MOSFET is the latest development of STMicroelectronics unique “single feature size” strip-based process. The resulting transistor shows extremely high packing density for low onresistance, rugged avalance characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility.

Features of P80NF55 Power MOSFET

  • Standard threshold drive

  • VDS Drain-source voltage (VGS = 0) 55 V

  • VGS Gate- source voltage ±20 V

  • ID Drain current (continuos) at TC = 25 °C 80 A

  • ID Drain current (continuos) at TC = 100 °C 80 A

  • IDM Drain current (pulsed) 320 A

  • PTOT Total dissipation at TC = 25 °C 300 W

  • Derating factor 2 W/°C

  • Tj Operating junction temperature

  • Tstg Storage temperature -55 to 175 °C

Application of P80NF55 Power MOSFET

  • Switching applications
