• WCS1600 Hall Effect Base Linear Current Sensor

Product Images are shown for illustrative purposes only and may differ from actual product.

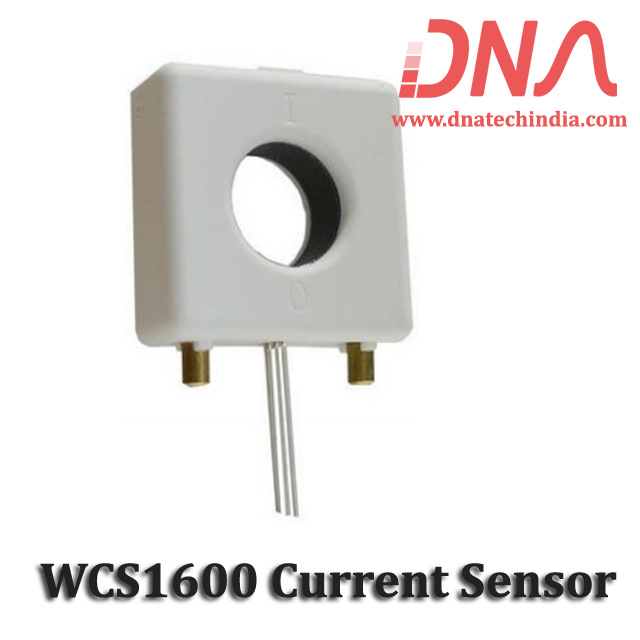

WCS1600 Hall Effect Base Linear Current Sensor

  • Stock: 1
  • Brand: Winson
  • SKU: 0306 | DAA586
  • Rs. 306.80 (inc GST)
    Rs.260.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

WCS1600 Hall Effect Base Linear Current Sensor

Winson WCS1600 Linear current sensor with 0 to 100 Ampere current sensing range and sensitivity of 22 mv/A.

The Winson WCS1600 current sensor provides economical and precise solution for both DC and AC current sensing in industrial, commercial and communications systems.

The unique package provides easy implementation without breaking original system and makes current sensing possible. Typical applications include motor control, load detection and management, over-current fault detection and any intelligent power management system etc…

The WCS1600 Current Sensor consists of a precise, low-temperature drift linear hall sensor IC with temperature compensation circuit and a diameter 9.0mm through hole. Users can use system’s own electric wire by pass it through this hole to measure passing current. This design allows system designers to monitor any current path without breaking or changing original system layoutat all. Any current flowing through this hole will generate a magnetic field which is sensed by the integrated Hall IC and converted into a proportional voltage. The terminals of the conductive path are electrically isolated from the sensor leads.

This allows the WCS1600 current sensor to be used in applications requiring electrical isolation without the use of opto-isolatorsor other costly isolation techniques and make system more competitive in cost.

DNA Solutions has a large collection of various types of Current and Voltage Sensors. Check our complete collection of Current and Voltage Sensor.

Features WCS1600 Linear Current Sensor

  • Diameter 9.0mm conductor through hole

  • Output voltage proportional to AC and DC current

  • Wide sensing current range 0~100A at 5V volt

  • High sensitivity 22mV/A

  • Wide operating voltage range 3.0~12 Volts

  • Low operating current 3mA

  • Isolation voltage 4000V

  • Ratiometric output from supply voltage

  • 23K Hz Bandwidth

  • Two bronze sticks for easy soldering on PCB
