MCP6004 Opamp SMD IC

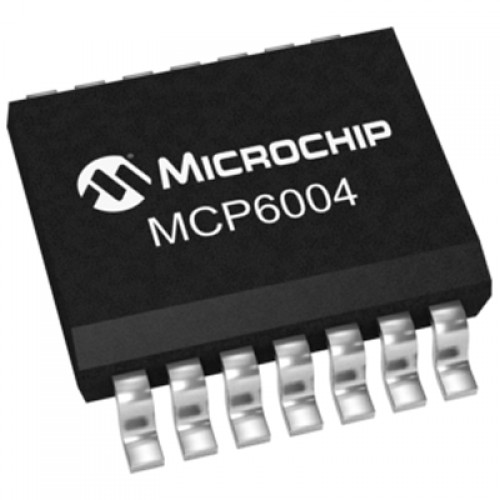

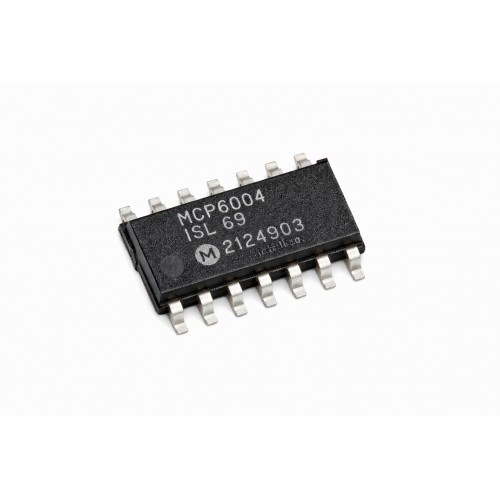

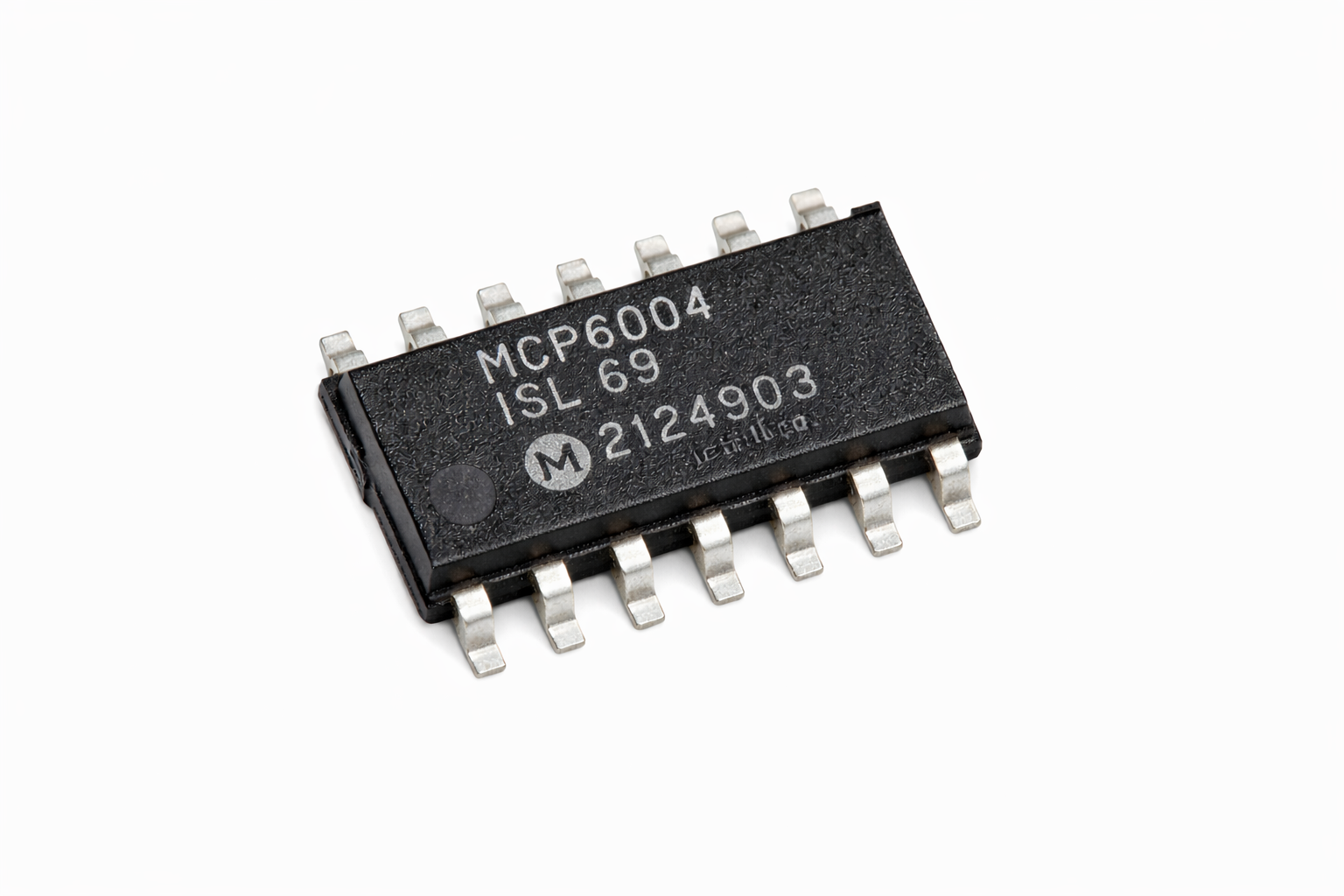

Microchip MCP6004 Quad Opamp SMD IC

MCP6004 Quad Opamp SMD IC with rail-to-rail input/output, 1 MHz GBWP, and 100 µA typical supply current.

The Microchip MCP6004 Quad Opamp SMD IC is designed for versatile applications. It operates efficiently within a voltage range of 1.8V to 6V. This op-amp provides rail-to-rail input/output, ensuring maximum signal integrity. With a gain bandwidth product of 1 MHz, it suits various electronic designs, especially in battery-powered systems.

Ideal for automotive, portable equipment, and analog filters, the MCP6004 enhances performance in notebooks and PDAs. Its low quiescent current of 100 µA makes it suitable for energy-sensitive applications. The op-amp operates effectively in a temperature range from -40°C to +125°C, ensuring reliability across conditions.

Explore the potential of the Microchip MCP6004 Quad Opamp SMD IC for your next project. Its compact design and robust features make it a preferred choice for engineers looking to optimize their electronic circuits. Consider integrating this op-amp to elevate your designs.

Discover the reliability of OPAMP from Microchip at DNA. Our range of OPAMP products ensures high performance in various applications. Check other "OPAMP" that we have in stock.

At DNA, we cater to all your electronic needs. If you can't find specific parts, let us know. We can import them for you and support retail as well as bulk orders. Explore related items like Analog IC, Capacitor, SMPS, Sensor, Crystal, and Power Supply. Contact Us.

Features of Microchip MCP6004 Quad Opamp SMD IC

• Gain Bandwidth Product: 1 MHz (typical)
• Rail-to-Rail Input/Output
• Supply Voltage: 1.8V to 6.0V
• Supply Current: IQ = 100 µA (typical)
• Phase Margin: 90° (typical)
• Industrial Temperature Range: -40°C to +85°C
• Extended Temperature Range: -40°C to +125°C
• Available in Single, Dual and Quad Packages

Specification of Microchip MCP6004 Quad Opamp SMD IC

• Supply Voltage: 1.8V to 6.0V
• Gain Bandwidth Product: 1 MHz
• Supply Current: 100 µA (typical)
• Phase Margin: 90°
• Temperature Range: -40°C to +125°C

Applications of Microchip MCP6004 Quad Opamp SMD IC

• Automotive
• Portable Equipment
• Photodiode Amplifier
• Analog Filters
• Notebooks and PDAs
• Battery-Powered Systems

Related Links for Microchip MCP6004 Quad Opamp SMD IC

• Other Products from OPAMP Category

Package Includes

• 1 X Microchip MCP6004 Quad Opamp SMD IC
