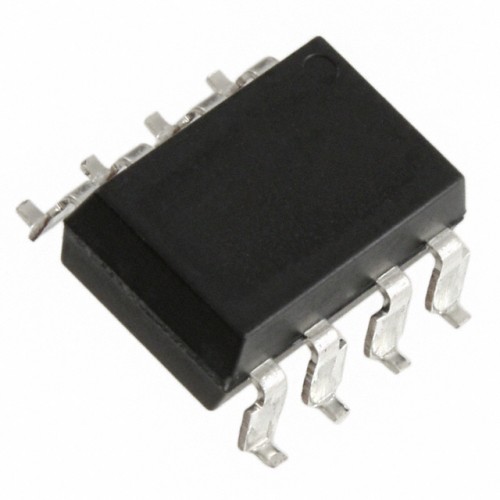

6N137 SMD High Speed Opto-coupler

The 6N137-SMD is single channel 10 MBd opto-coupler utilizing a high efficient input LED coupled with an integrated optical photodiode IC detector.

The detector has an open drain NMOS-transistor output, providing less leakage compared to an open collector Schottky clamped transistor output. For the single channel type, an enable function on pin 7 allows the detector to be strobed. The use of a 0.1 μF bypass capacitor connected between pin 5 and 8 is recommended.

Features of 6N137 High Speed Opto-coupler

• Choice of CMR performance of 15 kV/μs, 5 kV/μs, and 1000 V/μs

• High speed : 10 MBd typical

• +5 V CMOS compatibility

• Pure tin leads

• Guaranteed AC and DC performance over temperature : -40 °C to +100 °C temperature range

• Meets IEC 60068-2-42 (SO2) and IEC 60068-2-43 (H2S) requirements

• Low input current capability of 5 mA

Applications of 6N137 High Speed Optocoupler

•  Microprocessor system interface

•  PLC, ATE input/output isolation

•  Computer peripheral interface

•  Digital fieldbus isolation: CC-link, DeviceNet, profibus, SDS

•  High speed A/D and D/A conversion

•  AC plasma display panel level shifting

•  Multiplexed data transmission

•  Digital control power supply

•  Ground loop elimination, noise isolation
