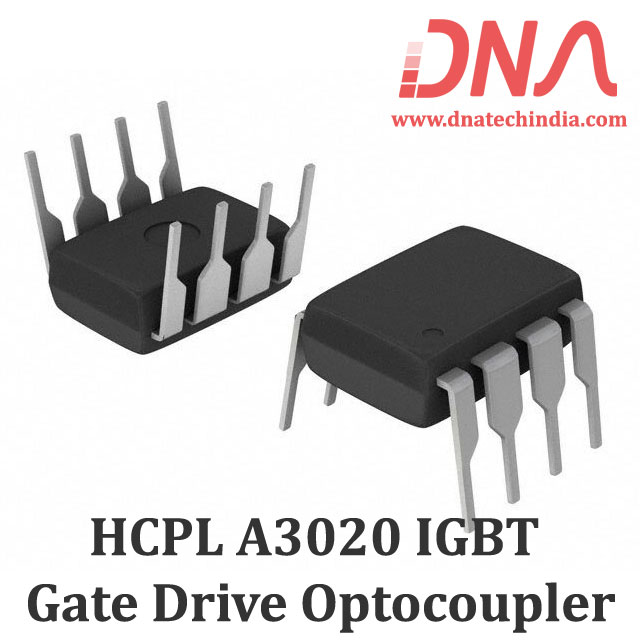

HCPL-A3020/A 3020 IGBT Gate Drive Optocoupler

HCPL A3020 Output Current IGBT Gate Drive Optocoupler

The HCPL-3020 and HCPL-0302 consist of a GaAsP LED optically coupled to an integrated circuit with a power output stage. These optocouplers are ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage of HCPL A3020 IGBT gate Drive Optocoupler provides the drive voltages required by gate-controlled devices. The voltage and current supplied by this optocoupler makes it ideally suited for directly driving small or medium power IGBTs. For IGBTs with higher ratings, the HCPL-0314/3140 (0.6 A), HCPL-3150 (0.6 A) or HCPL-3120 (2.5 A) gate drive opto-couplers can be used.

We have various types of Optocoupler IC's. Check our complete collection of Optocouplers & Optoisolator IC.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of HCPL A3020 IGBT Gate Drive Optocoupler

  • 0.4 A maximum peak output current
  • 0.2 A minimum peak output current
  • High speed response: 0.7 µs max. propagation delay over temperature range
  • Ultra high CMR: min. 10 kV/µs at VCM = 1000 V
  • Bootstrappable supply current: max. 3 mA
  • Wide operating temperature range: -40°C to 100°C
  • Wide VCC operating range: 10 V to 30 V over temperature range
  • Available in DIP8 (single) and SO8 (dual) package
  • Safety approvals: UL Recognized, 3750 Vrms for 1 minute. CSA Approval IEC/EN/DIN EN 60747-5-2 Approval.

                Applications of HCPL A3020 IGBT Gate Drive Optocoupler

                • Isolated IGBT/Power MOSFET gate drive
                • AC and brushless DC motor drives
                • Inverters for appliances
                • Industrial inverters
                • Switch Mode Power Supplies (SMPS)
                • Uninterruptable Power Supplies (UPS)
