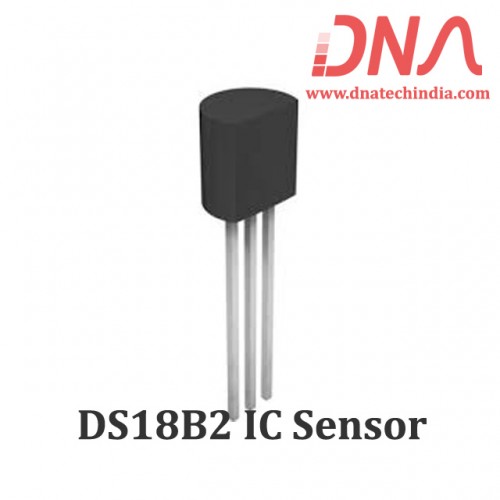

• DS18B20 IC CHIP Thermometer Temperature Sensor

Product Images are shown for illustrative purposes only and may differ from actual product.

DS18B20 IC CHIP Thermometer Temperature Sensor

  • Stock: Out Of Stock
  • SKU: 3191 | DAC920

Availability: NotInStock priceValidUntil: 2025-10-12

  • Rs. 116.82 (inc GST)
    Rs.99.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

DS18B20 IC CHIP Thermometer Temperature Sensor

DS18B20 IC CHIP Thermometer Temperature Sensor

The DS18B20 IC CHIP Thermometer Temperature Sensor provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central microprocessor. In addition, the DS18B20 can derive power directly from the data line (“parasite power”), eliminating the need for an external power supply. Each DS18B20 has a unique 64-bit serial code, which allows multiple DS18B20s to function on the same 1-Wire bus. Thus, it is simple to use one microprocessor to control many DS18B20s distributed over a large area. Applications that can benefit from this feature include HVAC environmental controls, temperature monitoring systems inside buildings, equipment, or machinery, and process monitoring and control systems.

DNA solutions,Nashik has various types of Power IC's. Check out our complete collection of  Power IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of DS18B20 IC CHIP Thermometer Temperature Sensor

  • Unique 1-Wire Interface Requires Only One Port Pin for Communication
  • Reduce Component Count with Integrated Temperature Sensor and EEPROM
  • Parasitic Power Mode Requires Only 2 Pins for Operation (DQ and GND)
  • Simplifies Distributed Temperature-Sensing Applications with Multidrop Capability
  • Flexible User-Definable Nonvolatile (NV) Alarm Settings with Alarm Search Command Identifies Devices
  • Temperatures Outside Programmed Limits

Applications DS18B20 IC CHIP Thermometer Temperature Sensor

  • Thermostatic Controls
  • Industrial Systems
  • Consumer Products
  • Thermometers
  • Thermally Sensitive Systems

Package Includes

1 x DS18B20 IC CHIP Thermometer Temperature Sensor

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
