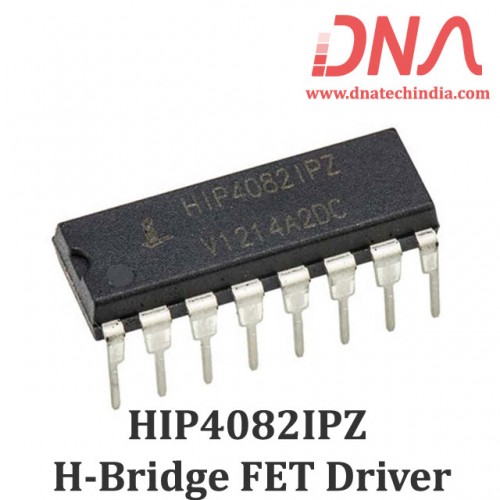

HIP4082IPZ H-Bridge FET Driver

HIP4082 H-Bridge Driver IC

HIP4082IPZ H-Bridge N-Channel MOSFET driver, 80V, 1.25A peak current, ideal for PWM motor control.

The HIP4082 H-Bridge Driver IC is designed for PWM motor control and UPS applications. It operates at a voltage of up to 80V, making it suitable for moderate power levels. This driver efficiently controls four N-Channel FETs in half or full bridge configurations, ensuring flexibility in your designs. With a programmable dead time ranging from 0.1 to 4.5μs, it accommodates switching frequencies up to 200kHz. The HIP4082 is an optimal choice for applications where size and cost matter.

This driver IC is equipped with features like shoot-through protection and under-voltage protection, enhancing its reliability in various applications. The HIP4082 does not include an internal charge pump but offers non-latching level-shift control for upper drive circuits. It is perfect for users seeking a compact solution for motor controls and power supply designs. The HIP4082 H-Bridge Driver IC is a dependable component for projects requiring efficient power management.

Ideal applications for the HIP4082 include UPS systems, DC motor controls, and switching power amplifiers. Its ability to drive 1000pF loads in free air at 50°C with minimal rise and fall times makes it a versatile option for medium to large voice coil motors, battery-powered vehicles, and noise cancellation systems. Explore the potential of the HIP4082 H-Bridge Driver IC for your next electronic project.

Discover the reliability of MOSFET & IGBT products at DNA. With the HIP4082 from a trusted manufacturer, you can find the perfect solution for your electronic needs. Check other "MOSFET & IGBT" that we have in stock.

At DNA, we cater to Indian electronics buyers. If you cannot find specific parts, we can import them for you. We support retail and bulk purchases. Explore related components like IGBT, Diodes, Sensors, Connectors, Microcontrollers, and Programmers. Contact Us.

Features of HIP4082 H-Bridge Driver IC

• Independently drives 4 N-Channel FETs
• Bootstrap supply max voltage to 95VDC
• Drives 1000pF load at 50°C with rise and fall times of 15ns
• User-programmable dead time (0.1 to 4.5μs)
• DIS (Disable) overrides input control
• Compatible with 5V to 15V logic levels
• Shoot-through protection
• Under-voltage protection

Specification of HIP4082 H-Bridge Driver IC

• Max voltage: 80V
• Peak current: 1.25A
• Switching frequency: up to 200kHz
• Package types: SOIC (N) and DIP
• Programmable dead time: 0.1 to 4.5μs

Applications of HIP4082 H-Bridge Driver IC

• UPS systems
• DC motor controls
• Full bridge power supplies
• Switching power amplifiers
• Battery powered vehicles

Related Links for HIP4082 H-Bridge Driver IC

• Other Products from MOSFET & IGBT Category

Package Includes

• 1 X HIP4082 H-Bridge Driver IC
