• IRS2110 IC

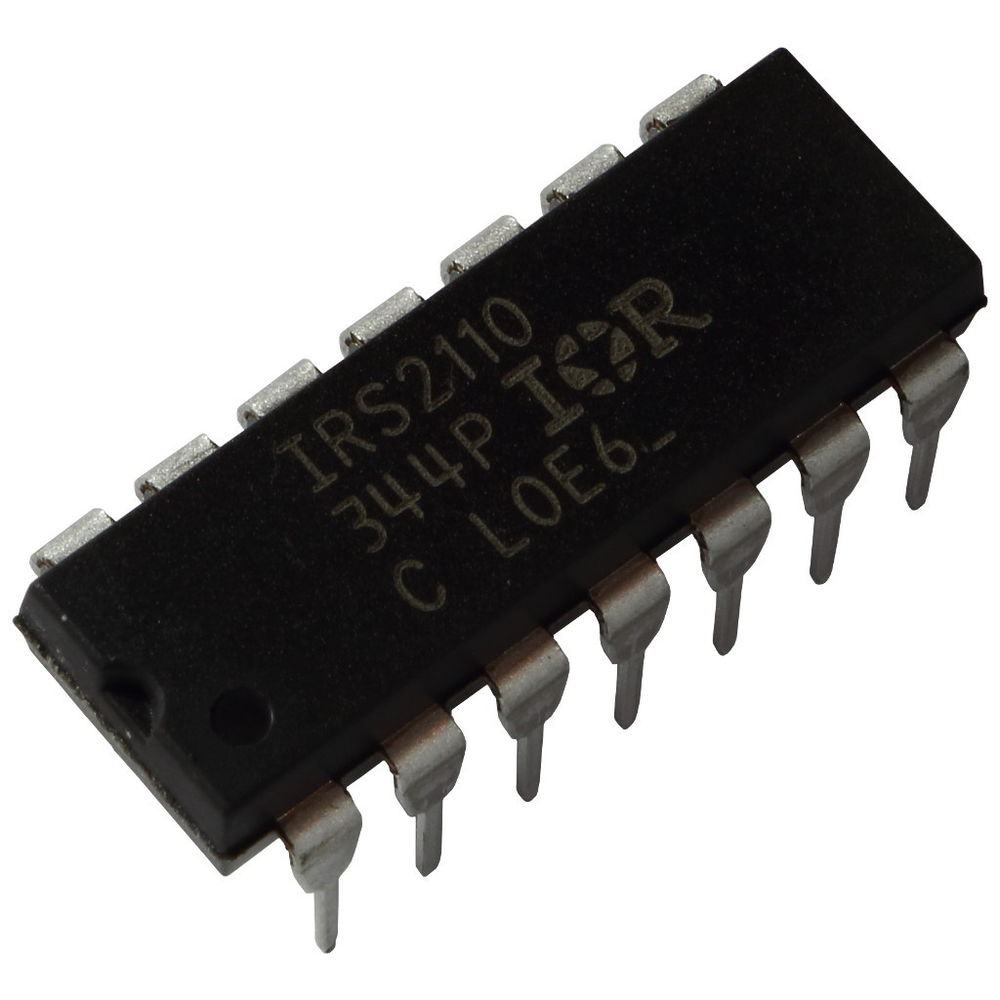

Product Images are shown for illustrative purposes only and may differ from actual product.

IRS2110 IC

  • Stock: 12
  • SKU: 1390 | DAA299
  • Rs. 100.30 (inc GST)
    Rs.85.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

IRS2110 IC

IRS2110 MOSFET and IGBT Driver IC

IRS2110 is high voltage, high speed power MOSFET and IGBT drivers with independent high-side and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 500 V or 600 V.

Features of IRS2110 High and Low Side Driver IC

  • Floating channel designed for bootstrap operation
  • Fully operational to +500 V or +600 V
  • Tolerant to negative transient voltage, dV/dt immune
  • Gate drive supply range from 10 V to 20 V
  • Undervoltage lockout for both channels
  • 3.3 V logic compatible
  • Separate logic supply range from 3.3 V to 20 V
  • Logic and power ground ± 5V offset
  • CMOS Schmitt-triggered inputs with pull-down
  • Cycle by cycle edge-triggered shutdown logic
  • Matched propagation delay for both channels
  • Outputs in phase with inputs
  • RoHS compliant

IF you want we also have IR2110 MOSFET & IGBT Driver IC in stock

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
