Product Images are shown for illustrative purposes only and may differ from actual product.

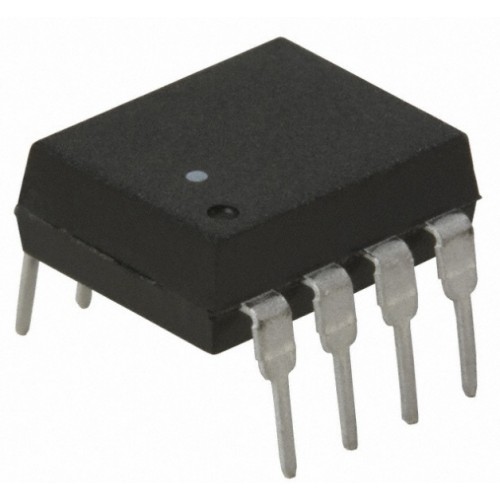

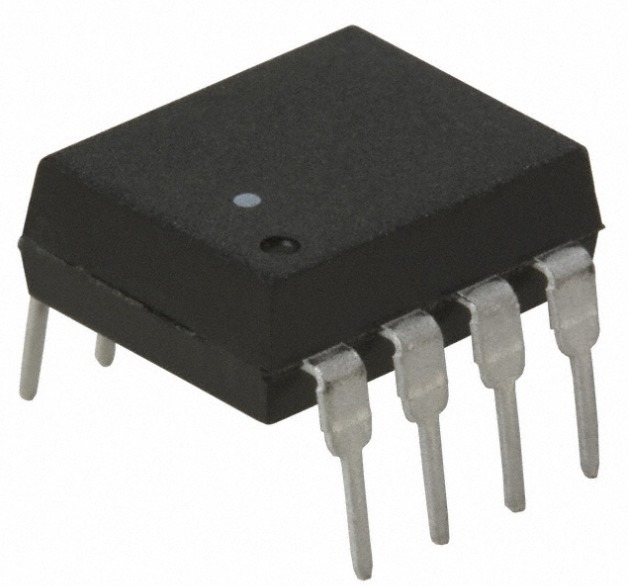

HCNW3120 GATE DRIVER OPTOCOUPLER DIP IC


Write a review | 2 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-03-13

  • SKU: 8750 | DAI027

Availability: NotInStock priceValidUntil: 2026-03-13

  • Rs. 379.96 (inc GST)
    Rs.322.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

HCNW3120 GATE DRIVER OPTOCOUPLER DIP IC

HCNW3120 GATE DRIVER OPTOCOUPLER DIP IC

The HCNW3120 is a high-speed, high-output current gate driver optocoupler IC designed for isolated gate driving applications. It integrates an infrared LED and a photodetector with a high-speed driver circuit, providing an isolated drive solution for power transistors such as IGBTs and MOSFETs.

DNA solutions, Nashik has various types of Optocoupler IC's. Check out our complete collection of Optocoupler IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of HCNW3120 GATE DRIVER OPTOCOUPLER DIP IC

  • High Output Current: Capable of sourcing and sinking up to 2.5A peak current
  • High-Speed Performance: Typical propagation delay of 200 ns
  • High Insulation Voltage: Rated for 5 kVrms isolation voltage
  • Low Input Drive Current: Operates at IF = 7 to 16 mA
  • Wide Operating Voltage: 15V to 30V power supply range
  • Rail-to-Rail Output Voltage: Ensures full gate drive capability

Specifications of HCNW3120 GATE DRIVER OPTOCOUPLER DIP IC

  • Supply Voltage (Vcc): 15V to 30V
  • Peak Output Current: 2.5A
  • Propagation Delay: 200 ns (typical)
  • Isolation Voltage: 5000 Vrms
  • Input Threshold Current: 7-16 mA
  • Operating Temperature: -40°C to +100°C
  • Package Type: 8-pin DIP

Applications of HCNW3120 GATE DRIVER OPTOCOUPLER DIP IC

  • Power Switching Applications
  • Motor Controllers
  • Photovoltaic Inverters
  • SMPS and DC-DC Converters

    Package Includes

          1 x HCNW3120 GATE DRIVER OPTOCOUPLER DIP IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
