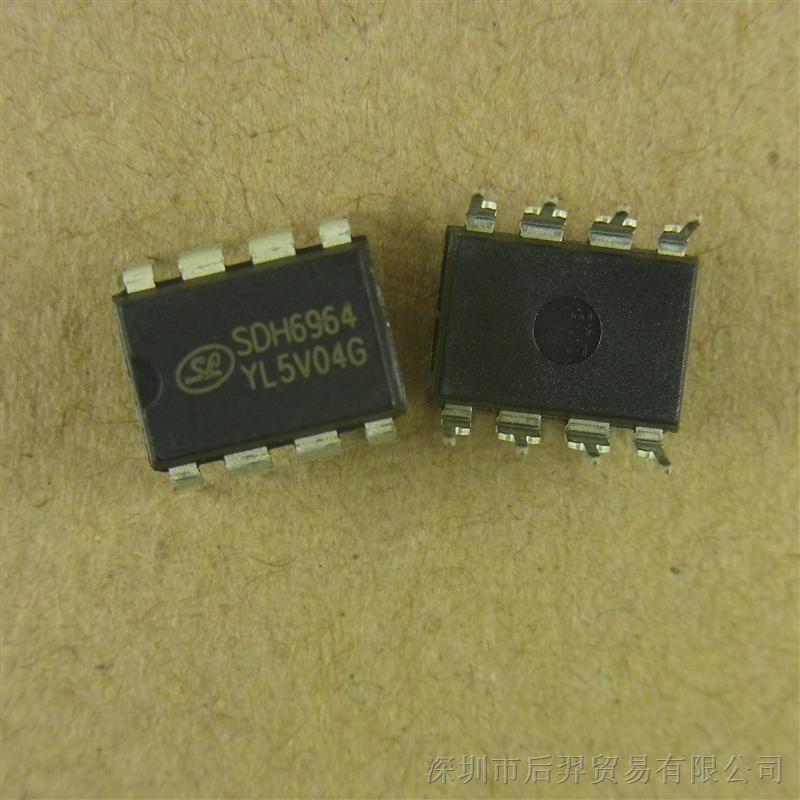

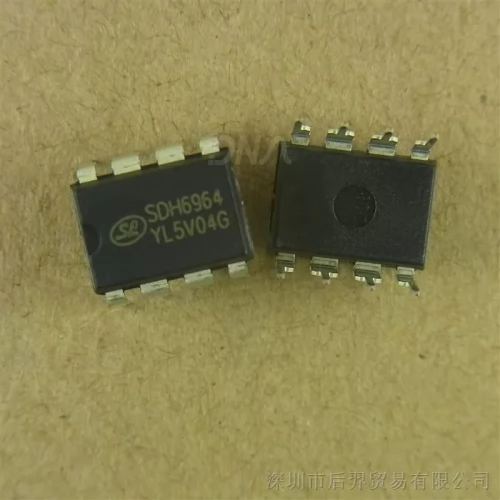

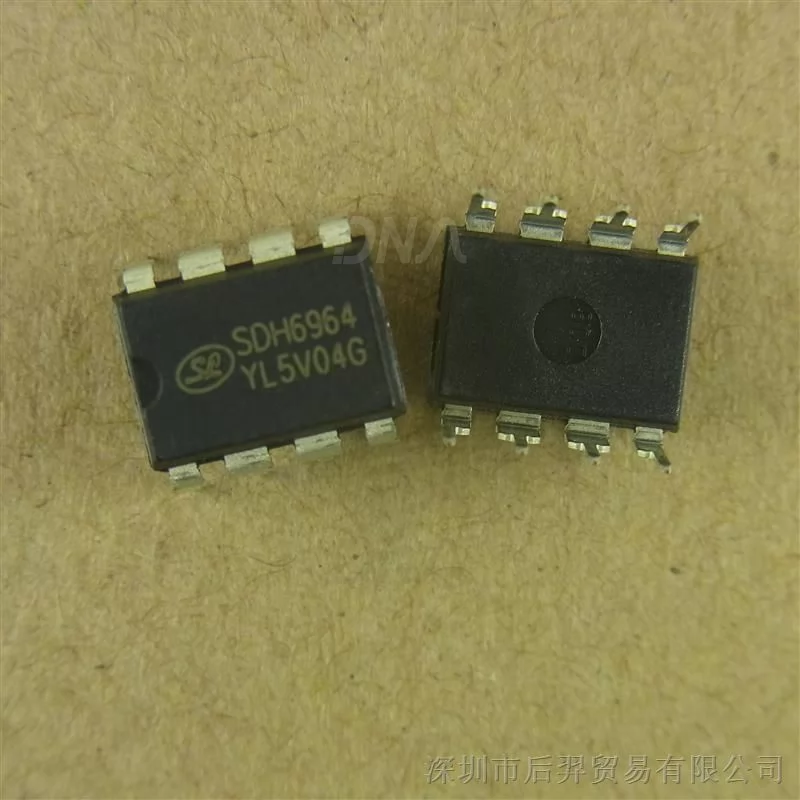

  • SDH6964 PWM+PFM Controller

Product Images are shown for illustrative purposes only and may differ from actual product.

SDH6964 PWM+PFM Controller

  • Product Code: 1209
  • Availability: 22
  • Price :

    Rs.69.62 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

SDH6964 PWM+PFM Controller

SDH6964 is current mode PWM+PFM controller with built-in high voltage MOSFET and high-voltage startup constant current source used for SMPS, compliant with Energy Star 6.0 standard. This circuit has built-in high-voltage startup constant current source, features low standby power dissipation (<40mW) and low start current, has many kinds of operating modes. In light load condition, it works in PFM mode to improve the conversion efficiency. In standby model, it enters burst mode to reduce the standby power dissipation.
Built-in peak current compensation circuit makes the limit peak current stable even with different input AC voltage. Limit output power can be adjusted through the resistor. Maximum peak current compensation during power-on reduces pressure on transformer to avoid saturation, the peak current compensation will decrease for balance after power-on.
It integrates various protections such as undervoltage lockout, overcurrent protection, overload protection, lead edge blanking, primary winding overcurrent protection and thermal shutdown. The circuit will keep restarting until normal if protection occurs.


Features of SDH6964

  • Energy Star 6.0 standard
  • High-voltage startup constant current source
  • Low standby power dissipation<40mW
  • A variety of operating modes
  • Working in PFM mode at light load condition for higher conversion efficiency
  • Overvoltage, primary winding overcurrent, overload, and over temperature protections
  • Switching frequency jitter for low EMI
  • Adjustable limit output power
  • Undervoltage lockout
  • Built-in integrated high voltage MOSFET
  • Auto restart
  • Peak current compensation
  • Maximum peak current compensation for initialization to realize the soft start function
  • Burst mode
  • Cycle by cycle current limit

Applications of SDH6964

  • Charger
  • Adaptor
  • STB Power
