TOP250YN

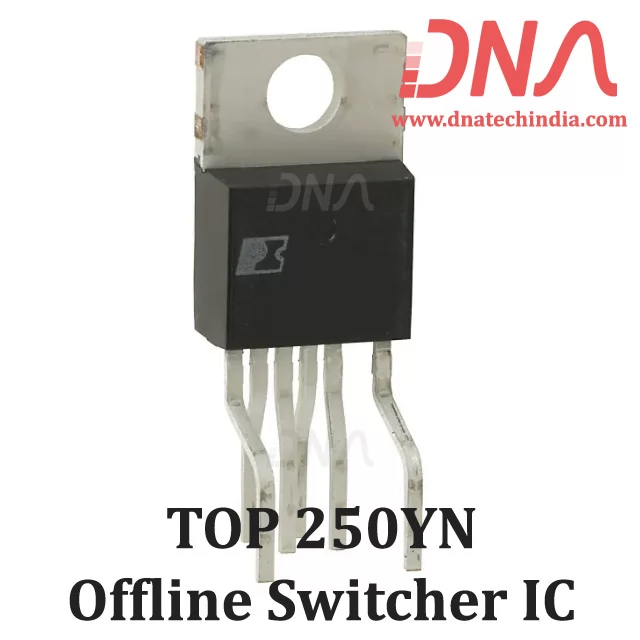

TOP250YN Power Integrations IC

The TOP250YN IC is a 135W extended power design flexible integrated Off-line Switcher uses the same proven topology as TOPSwitch and it integrating the high voltage power MOSFET, PWM control, fault protection and other control circuitry onto a single CMOS chip. Many new functions are integrated to improve design flexibility, performance and energy efficiency. Line feed-forward with maximum duty cycle (DCMAX) reduction rejects line ripple and limits DCMAX at high line.

Fetures of TOP250YN Power Integrations IC:

  • Eliminate or reduce cost of external components

  • Fully integrated soft-start for minimum stress/over-shoot

  • Externally programmable accurate current limit

  • Wider duty cycle for more power, smaller input capacitor

  • Line under-voltage detection - No turn OFF glitches

  • Line over-voltage shutdown extends line surge limit

  • Regulates to zero load without dummy loading

  • Hysteretic thermal shutdown for automatic fault recovery

  • Large thermal hysteresis prevents PC board over-heating

  • xtremely low consumption in remote off mode

  • Frequency lowered with load for high standby efficiency

  • Allows shutdown/wake-up via LAN/input port

Specifications of TOP250YN Power Integrations IC:

  • Input Voltage AC Min : 85V

  • Input Voltage AC Max : 265V

  • Operating Temperature Min : -40°C

  • Operating Temperature Max : 150°C

  • Frequency - Switching : 66kHz ~ 132kHz

  • AC / DC Converter Case Style : TO-220

  • Fault Protection : Current Limiting, Over Temperature, Over Voltage

  • Control Features : Frequency Control

  • No. of Pins : 6Pins

  • Power Rating : 210W

  • Duty Cycle : 66.8%

  • Topology : Flyback

  • Voltage - Breakdown : 700V

  • Topology : Flyback
