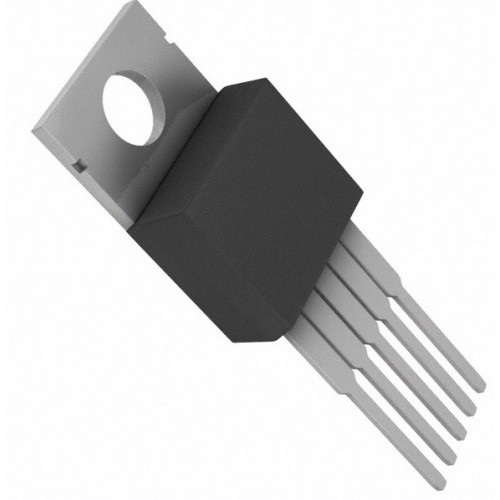

Product Images are shown for illustrative purposes only and may differ from actual product.

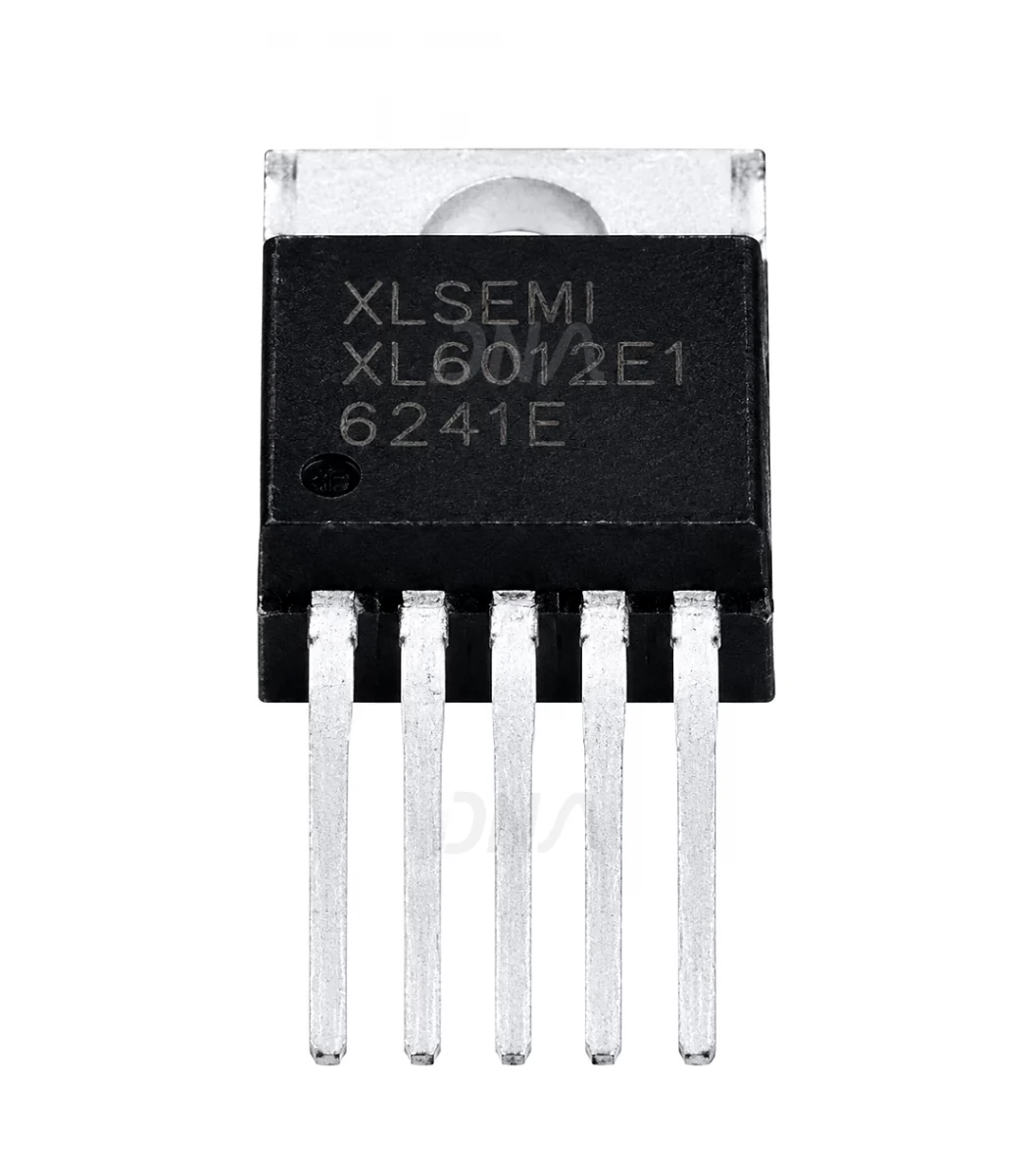

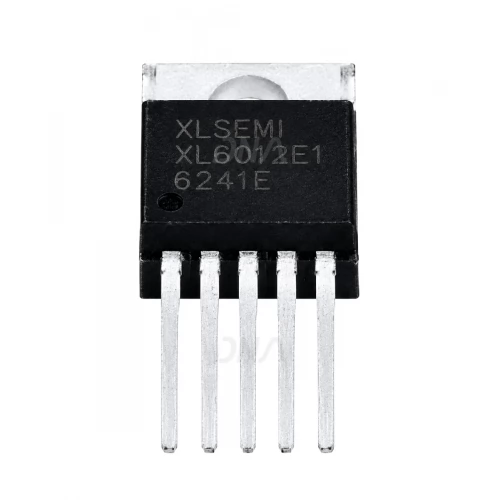

XLSEMI XL6012E1 Current-Mode Switching DC/DC Converter IC

  • Stock: 5

    Availability: InStock priceValidUntil: 2026-12-16

  • Brand: XL Semi
  • SKU: 1673 | DAA625

Availability: InStock priceValidUntil: 2026-12-16

  • Rs. 106.20 (inc GST)
    Rs.90.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

XLSEMI XL6012E1 Current-Mode Switching DC/DC Converter IC

XL6012E1 current-mode DC/DC converter IC with 5–40 V input, boost output up to 60 V and boost, flyback, SEPIC or inverting configurations.

The XLSEMI XL6012E1 is a current-mode switching DC/DC converter IC. It supports boost, flyback, SEPIC and inverting configurations. Its 5 V to 40 V input range and boost output up to 60 V suit designs that need a higher or changed output voltage.
An internal high-voltage N-channel MOSFET reduces the need for a separate switching transistor. Current-mode control supports stable regulation as input or load conditions change. Built-in current limit, thermal shutdown and soft start support reliable circuit operation. The enable pin lets a design turn the regulator off.
Use this boost converter IC in EPC and notebook car adapters, automotive and industrial converters, and portable electronic equipment. Its configurable operation also suits SEPIC and inverting converter designs.
Find the XLSEMI XL6012E1 and other power-control parts at DNA. Browse our Voltage Regulators range to compare components for your design and sourcing needs. Check other Voltage Regulators that we have in stock
If you cannot find a part, contact DNA for help with import support and retail or bulk orders. You can also ask about related items such as SMPS, microcontrollers, programmers and analog ICs. Contact Us

Features of XLSEMI XL6012E1 Current-Mode Switching DC/DC Converter IC

  • Configurable for boost, flyback, SEPIC or inverting conversion
  • Current-mode control supports stable regulation
  • Internal high-voltage N-channel power MOSFET
  • Built-in current limit, thermal shutdown and soft start
  • Enable pin supports shutdown control
  • Built-in frequency compensation

Specifications of XLSEMI XL6012E1 Current-Mode Switching DC/DC Converter IC

  • Input operating voltage: 5 V to 40 V
  • Maximum boost output voltage: 60 V
  • Switch current limit: 5 A typical (VFB = 0 V)
  • Switching frequency: 180 kHz typical (144 kHz to 216 kHz)
  • Feedback voltage: 1.25 V typical
  • Operating junction temperature: -40°C to 125°C
  • Package: TO220-5L, 5 leads

Applications of XLSEMI XL6012E1 Current-Mode Switching DC/DC Converter IC

  • EPC and notebook car adapters
  • Automotive and industrial boost, buck-boost and inverting converters
  • Portable electronic equipment

Related Links for XLSEMI XL6012E1 Current-Mode Switching DC/DC Converter IC

Package Includes

  • 1 X XLSEMI XL6012E1 Current-Mode Switching DC/DC Converter IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
