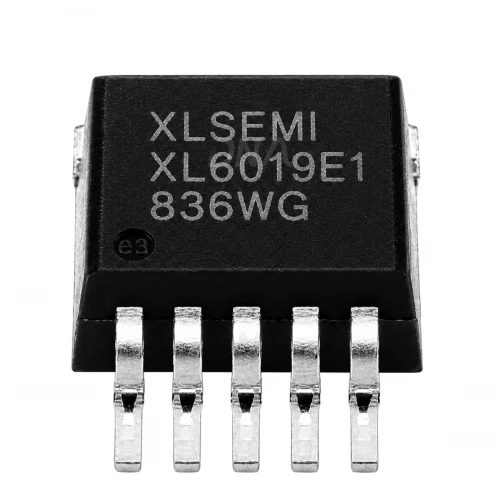

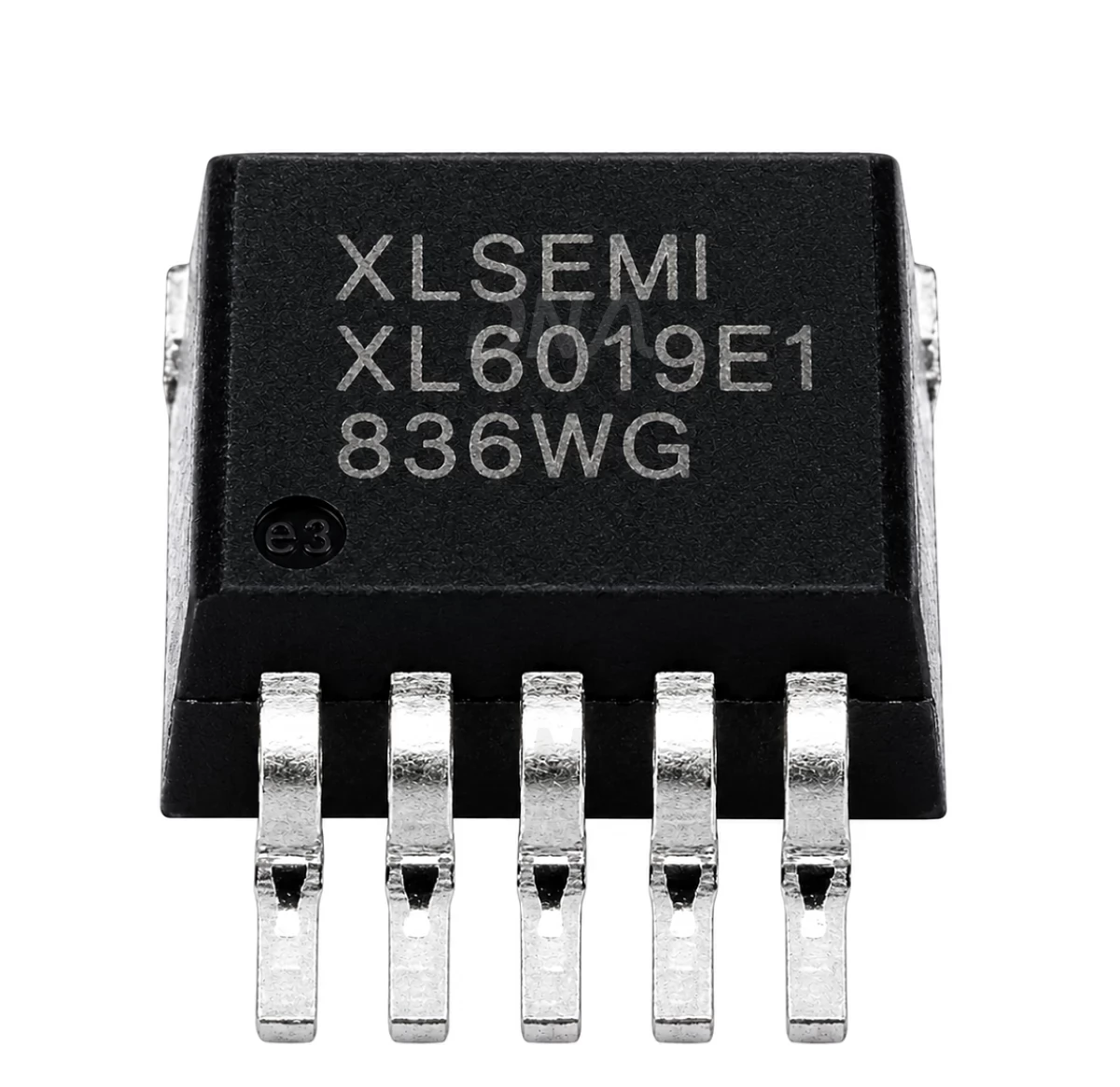

  • XL6019 Buck Boost IC

Product Images are shown for illustrative purposes only and may differ from actual product.

XL6019 Buck Boost IC

  • Brand: XL Semi
  • Product Code: 1674
  • Availability: 48
  • Price :

    Rs.88.50 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

XL6019 Step-up, Step-Down DC to DC Converter IC

180KHz 60 Volts 5 Ampere  Buck-Boost,  Inverting DC to DC Converter

XL6019 is an upgraded version of XL6009. XL6019 automatic step-up as well as step-down Dc to Dc Adjustable Power Supply IC from XL Semi.

The XL6019 regulator is a wide input range, current mode, DC/DC converter which is capable of generating either positive or negative output voltages. It can be configured as either a boost, flyback, SEPIC or inverting converter. The XL6019 built in  N-channel power MOSFET and fixed frequency oscillator, current-mode architecture results in stable operation over a wide range of supply and output voltages. The XL6019 Buck-Boost DC to DC voltage regulator is special design for portable electronic equipment applications.

Features of XL6019 DC to DC converter IC

  • Wide 5 Volts to 40 Volts Input Voltage Range
  • Positive or Negative Output Voltage
  • Programming with a Single Feedback Pin
  • Current Mode Control Provides Excellent
  • Transient Response
  • 1.25 Volts reference adjustable version
  • Fixed 180KHz Switching Frequency
  • Maximum 5 Ampere Switching Current
  • SW PIN Built in Over Voltage Protection
  • Excellent line and load regulation
  • EN PIN TTL shutdown capability
  • Internal Optimize Power MOSFET
  • High efficiency up to 94%
  • Built in Frequency Compensation
  • Built in Soft-Start Function
  • Built in Thermal Shutdown Function
  • Built in Current Limit Function
  • Available in TO263-5L package

Applications of XL6019 IC

  • EPC / Notebook Car Adapter
  • Automotive and Industrial Boost / Buck-Boost / Inverting Converters
  • Portable Electronic Equipment
