Product Images are shown for illustrative purposes only and may differ from actual product.

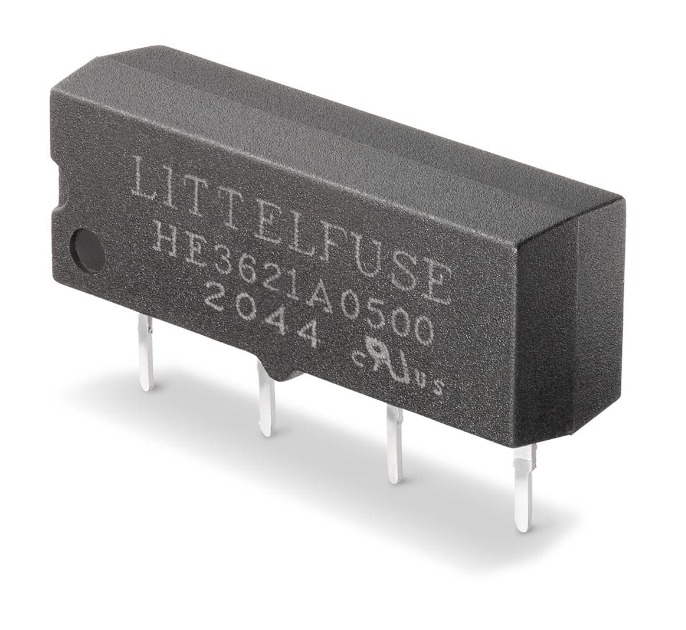

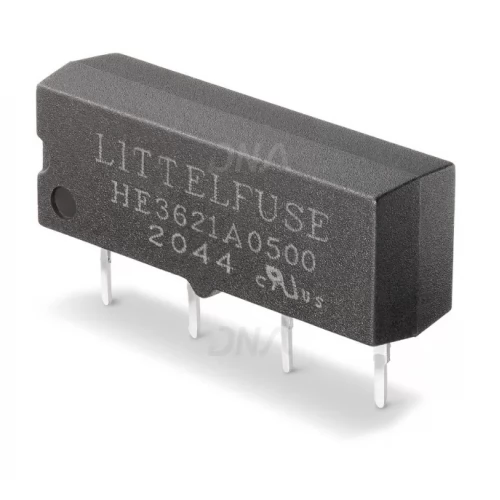

HE3621A0500 Reed Relay


Write a review | 0 reviews

  • Stock: 2

    Availability: InStock priceValidUntil: 2026-03-14

  • SKU: 8581 | DAH878

Availability: InStock priceValidUntil: 2026-03-14

  • Rs. 195.41 (inc GST)
    Rs.165.60 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

HE3621A0500 Reed Relay

HE3621A0500 Reed Relay

The HE3621A0500 is a high-performance reed relay designed for switching applications requiring fast response times, long operational life, and low power consumption. This relay consists of a hermetically sealed reed switch enclosed in a compact package with an integrated coil for actuation. It operates using a low-voltage DC coil and is known for its reliable switching capabilities in low-current and high-voltage circuits.

DNA solutions, Nashik has various types of Relay's. Check out our complete collection of Relay's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of HE3621A0500 Reed Relay

  • Compact Design: Small form factor for space-constrained applications
  • Low Power Consumption: Efficient operation with minimal power requirements
  • Fast Switching Speed: Rapid response times due to the reed switch mechanism
  • High Reliability: Long mechanical and electrical lifespan
  • Hermetically Sealed Contacts: Protection from environmental factors such as dust, moisture, and contaminants

Specifications of HE3621A0500 Reed Relay

  • Coil Voltage: 5V DC
  • Coil Resistance: Approx. 500Ω
  • Contact Configuration: Single Pole Single Throw (SPST) Normally Open (NO)
  • Operate Time: Typically < 1ms
  • Release Time: Typically < 1ms
  • Insulation Resistance: ≥ 10⁹Ω
  • Dielectric Strength: > 1500V DC
  • Operating Temperature Range: -40°C to +85°C

Applications of HE3621A0500 Reed Relay

  • Test and Measurement Equipment
  • Telecommunication Systems
  • Industrial Automation
  • Medical Devices
  • Security Systems

    Package Includes

          1 x HE3621A0500 Reed Relay

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
