Product Images are shown for illustrative purposes only and may differ from actual product.

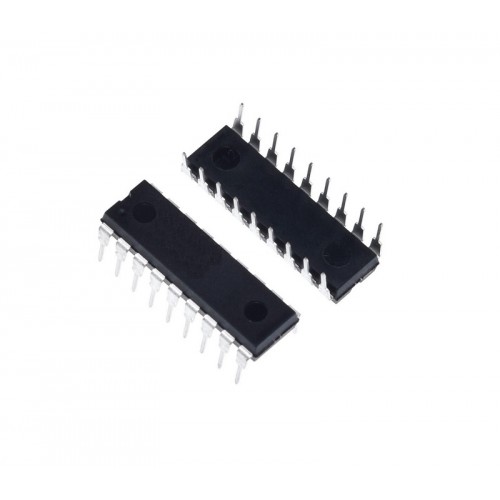

TBD62083APG 8 channel sink type DMOS transistor array - DIP IC


Write a review | 0 reviews

  • Stock: 6

    Availability: InStock priceValidUntil: 2026-02-18

  • SKU: 7744 | DAH579

Availability: InStock priceValidUntil: 2026-02-18

  • Rs. 51.33 (inc GST)
    Rs.43.50 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

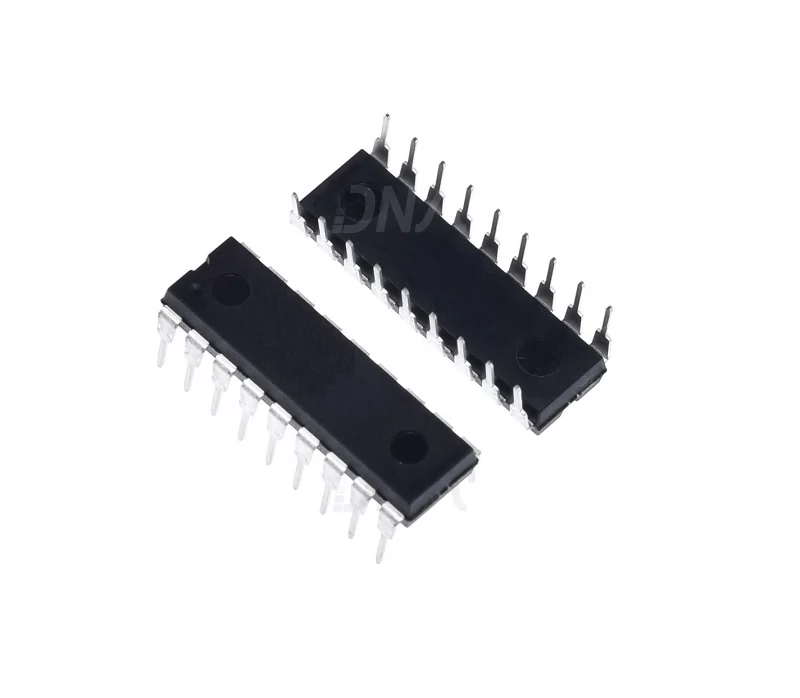

TBD62083APG 8channel sink type DMOS transistor array - DIP IC

TBD62083APG 8 channel sink type DMOS transistor array - DIP IC

The TBD62083APG is an 8-channel Darlington transistor array utilizing DMOS (Double-Diffused MOSFET) technology for switching and sinking currents. It is designed to handle high-voltage and high-current applications efficiently, providing a reliable interface between logic-level control signals and high-power loads. The device is provided in a compact DIP package for easy integration.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of TBD62083APG 8channel sink type DMOS transistor array - DIP IC

  • High Voltage Tolerance
  • High Current Capability
  • Built-in Flyback Diodes
  • TTL/CMOS Compatible Inputs
  • Low Power Dissipation
  • Compact DIP Package
  • Built-in Clamp Diodes

Specifications of TBD62083APG 8channel sink type DMOS transistor array - DIP IC

  • Electrical Characteristics:

  1. Output Voltage (VCE): Up to 50V.
  2. Output Current (Io): Up to 500mA per channel.
  3. Input Voltage (VIH): 2.7V (minimum logic HIGH level).
  4. Output Saturation Voltage (VCE(sat)): Typically 1.4V at 350mA.
  5. Input Current (IIN): ~1mA per channel.

  • Switching Characteristics:

  1. Fast switching speed for efficient load driving.

  • Thermal Characteristics:

  1. Operating Temperature Range (Topr): -40°C to +85°C.
  2. Power Dissipation (PD): ~1.47W.

  • Package:

  1. Type: DIP-18 (Dual Inline Package).
  2. Pin configuration: 8 input pins, 8 output pins, one GND, and one COM pin.

Applications of TBD62083APG 8channel sink type DMOS transistor array - DIP IC

  • Relay Drivers.
  • LED Matrix/Display Drivers.
  • Stepper Motor Drivers.
  • Solenoid Drivers.
  • Printer Head Actuation.
  • General High-Current Switch Applications.

    Package Includes

          1 x TBD62083APG 8channel sink type DMOS transistor array - DIP IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
