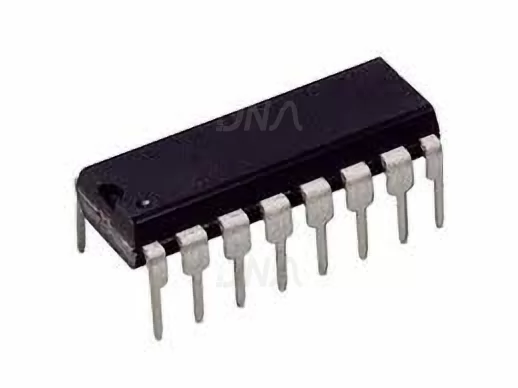

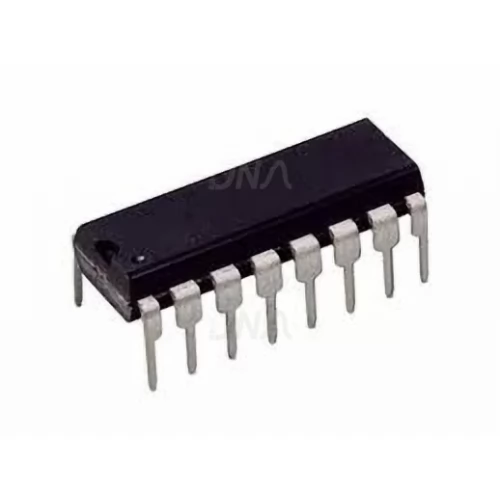

TL494 PWM Control Circuit

TL494 PWM Control Circuit for power supply control with adjustable oscillator and 200mA output.

The TL494 PWM Control Circuit is designed for effective power-supply management. This device integrates essential functions for PWM control in a single chip, making it versatile for various applications. Features include two error amplifiers, an adjustable oscillator, and a precise 5-V regulator, allowing customization for specific needs. The TL494 PWM Control Circuit supports both single-ended and push-pull operation, ensuring efficient power delivery.

Ideal for desktop PCs, microwave ovens, and various power supplies, the TL494 PWM Control Circuit excels in applications requiring reliability and performance. Its internal circuitry prevents double pulses, while variable dead time allows for precise control. This makes it suitable for high-efficiency setups, such as solar power inverters and E-bikes.

Incorporating the TL494 PWM Control Circuit into your designs ensures robust power management. Its architecture facilitates easy synchronization, and with a 5% tolerance on the reference supply, it meets the demands of modern electronic systems efficiently.

Explore the reliability of Power Devices at DNA, your trusted retailer for Power Devices. Discover tailored solutions to enhance your projects. Check other Power Devices that we have in stock.

At DNA, we cater to Indian electronics buyers. If you need specific components like a DC to DC Converter Module, Inductor, or Microcontroller, reach out to us. We can import items not in stock and support both retail and bulk orders. Contact Us.

Features of TL494 PWM Control Circuit

  • Complete PWM power-control circuitry
  • Uncommitted outputs for 200-mA sink or source current
  • Variable dead time for precise control

Specification of TL494 PWM Control Circuit

  • Adjustable oscillator
  • 5-V precision regulator
  • Dead-time control comparator

Applications of TL494 PWM Control Circuit

  • Power supply control
  • Desktop PCs
  • Microwave ovens
  • Solar power inverters
  • E-bikes

Package Includes

  • 1 X TL494 PWM Control Circuit
