• ULN2803APG 8 Darlington Transistor Arrays IC DIP-18 Package

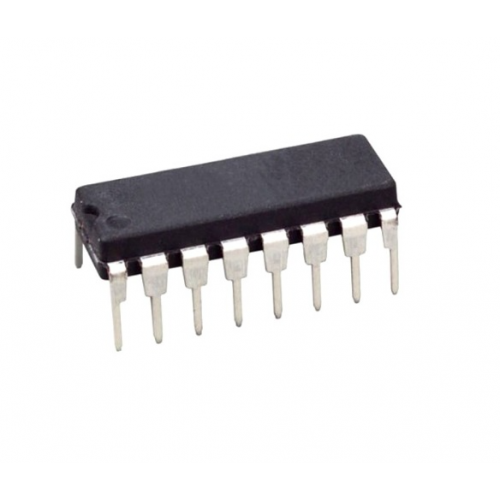

Product Images are shown for illustrative purposes only and may differ from actual product.

ULN2803APG 8 Darlington Transistor Arrays IC DIP-18 Package

  • Stock: 4
  • SKU: 9123 | DAF128
  • Rs. 51.57 (inc GST)
    Rs.43.70 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

ULN2803APG 8 Darlington Transistor Arrays IC DIP‑18 Package

ULN2803APG 8 Darlington Transistor Arrays IC DIP‑18 Package

The ULN2803APG 8 Darlington Transistor Arrays IC DIP‑18 Package is an 8-channel Darlington sink driver comprising high–voltage, high–current NPN transistor pairs in a DIP-18 package. Each channel can sink up to 500 mA at voltages up to 50 V, and includes built-in clamp diodes for inductive load protection, making it ideal for drivers, relays, lamps, and motor controls.

DNA Solutions, Nashik stocks various transistor arrays and driver ICs. Explore our full range of Transistor Arrays IC's.

If you are in Nashik, you can buy this component at our local shop at New CBS, Nashik or place an order online and receive it at your doorstep across India.

Features of ULN2803APG 8 Darlington Transistor Arrays IC DIP‑18 Package

  • 8 NPN Darlington pairs with common emitter

  • Each channel sinks up to 500 mA at ≤ 50 V

  • Integral clamp diodes for inductive load protection

  • Compatible with TTL/CMOS logic inputs via 2.7 kΩ base resistors

  • Available in through-hole DIP‑18 package for easy prototyping

Specifications of ULN2803APG 8 Darlington Transistor Arrays IC DIP‑18 Package

  • Number of Channels: 8

  • Current Rating: 500 mA per channel

  • Voltage Rating VCEO: 50 V min

  • Package: DIP‑18, through‑hole, 7.62 mm pitch

  • Operating Temperature: –40 °C to +85 °C

Applications of ULN2803APG 8 Darlington Transistor Arrays IC DIP‑18 Package

  • Driving relays, solenoids & motors

  • LED or incandescent lamp drivers

  • Stepper motor or display drivers

  • Relay interface for microcontroller digital outputs

Package Includes

    1 × ULN2803APG 8 Darlington Transistor Arrays IC (DIP‑18)

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
