• ESP32-WROOM-32E-N16 (16MB 128Mbit Flash WiFi Bluetooth Module)

Product Images are shown for illustrative purposes only and may differ from actual product.

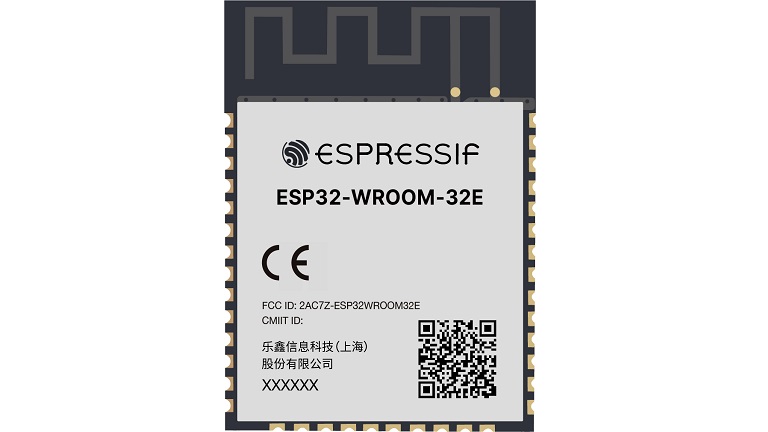

ESP32-WROOM-32E-N16 (16MB 128Mbit Flash WiFi Bluetooth Module)

  • Rs. 348.10 (inc GST)
    Rs.295.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

Espressif ESP32-WROOM-32E 16M 128Mbit Flash WiFi Bluetooth Module

ESP32-WROOM-32E 16M 128Mbit Flash with Wi-Fi + Bluetooth MCU module from Espressif

ESP32-WROOM-32E powerful, generic Wi-Fi + Bluetooth + Bluetooth LE MCU modules that target a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding. ESP32-WROOM-32E comes with a PCB antenna.

At the core of the module is the ESP32-D0WD-V3 chip  The chip embedded is designed to be scalable and adaptive. There are two CPU cores that can be individually controlled, and the CPU clock frequency is adjustable from 80 MHz to 240 MHz. The chip also has a low-power coprocessor that can be used instead of the CPU to save power while performing tasks that do not require much computing power, such as monitoring of peripherals. ESP32 integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, SD card interface, Ethernet, high-speed SPI, UART, I2S and I2C.

The integration of Bluetooth, Bluetooth LE and Wi-Fi ensures that a wide range of applications can be targeted, and that the module is all-around: using Wi-Fi allows a large physical range and direct connection to the Internet through a Wi-Fi router, while using Bluetooth allows the user to conveniently connect to the phone or broadcast low energy beacons for its detection. The sleep current of the ESP32 chip is less than 5 µA, making it suitable for battery powered and wearable electronics applications. The module supports a data rate of up to 150 Mbps, and 20 dBm output power at the antenna to ensure the widest physical range. As such the module does offer industry-leading specifications and the best performance for electronic integration, range, power consumption, and connectivity.

The operating system chosen for ESP32 is freeRTOS with LwIP; TLS 1.2 with hardware acceleration is built in as well. Secure (encrypted) over the air (OTA) upgrade is also supported, so that users can upgrade their products even after their release, at minimum cost and effort

Features of ESP32-WROOM-32E-N16

  • ESP32-D0WD-V3 embedded, Xtensa dual-core
  • 32-bit LX6 microprocessor, up to 240 MHz
  • 16 KB SRAM in RTC
Wi­Fi
  • 802.11b/g/n
  • Bit rate: 802.11n up to 150 Mbps
  • A-MPDU and A-MSDU aggregation
  • 0.4 µs guard interval support
  • Center frequency range of operating channel: 2412 ~ 2484 MHz
Bluetooth
  • Bluetooth V4.2 BR/EDR and Bluetooth LE specification
  • Class-1, class-2 and class-3 transmitter
  • AFH
  • CVSD and SBC
Hardware
  • Interfaces: SD card, UART, SPI, SDIO, I2C, LED, PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, Two-Wire Automotive Interface (TWAI, compatible with ISO11898-1)

Application of ESP32-WROOM-32E-N16

  • Generic Low-power IoT Sensor Hub
  • Generic Low-power IoT Data Loggers
  • Cameras for Video Streaming
  • Over-the-top (OTT) Devices
  • Speech Recognition
  • Image Recognition
  • Mesh Network
  • Home Automation
  • Smart Building
  • Industrial Automation
  • Smart Agriculture
  • Audio Applications
  • Health Care Applications
  • Wi-Fi-enabled Toys
  • Wearable Electronics
  • Retail & Catering Applications

Related Link

Package Includes

  • 1 x ESP32-WROOM-32E-N16 (16MB 128Mbit Flash WiFi Bluetooth Module)

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
