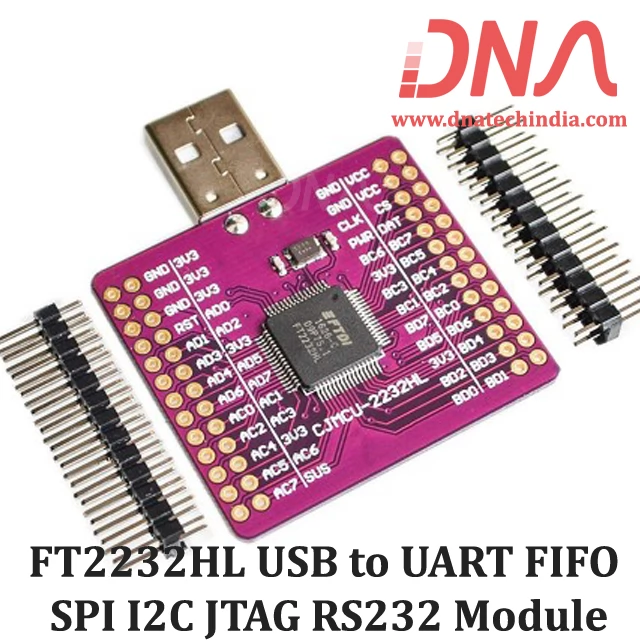

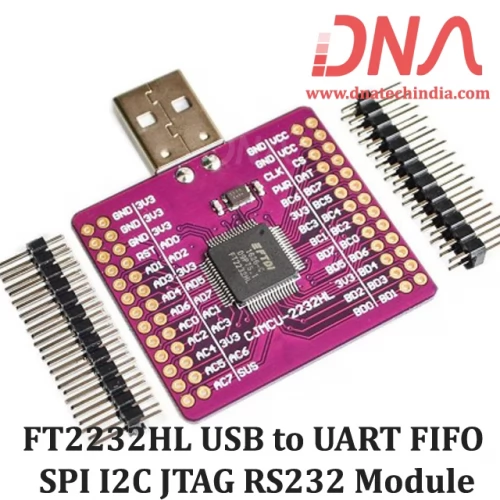

FT2232HL USB to UART FIFO SPI I2C JTAG RS232 Bit-Bang Module

FT2232HL USB to UART FIFO SPI I2C JTAG RS232 Module

FT2232H is FTDI’s 5th generation of USB devices.  The FT2232H is a USB 2.0 Hi-Speed (480Mb/s) to UART/FIFO IC.  It has the capability of being configured in a variety of industry standard serial or parallel interfaces.

Driver Support :

The FT2232H requires USB drivers which are used to make the FT2232H appear as a virtual COM port (VCP). This allows the user to communicate with the USB interface Via a standard PC serial emulation port (for example TTY). Another FTDI USB driver, the D2XX driver, can also be used with application software to directly access the FT2232H through a DLL.

Applications of FT232H Module

• Single chip USB to dual channel UART (RS232, RS422 or RS485).

• Single chip USB to dual channel FIFO.

• Single chip USB to dual channel JTAG.

• Single chip USB to dual channel SPI

• Single chip USB to dual channel I2C.

• Single chip USB to dual channel Bit-Bang.

• Single chip USB to dual combination of any of above interfaces

• Single chip USB to Fast Serial Optic Interface.

• Single chip USB to CPU target interface (as memory), double and independent.

Specification of FT2232H Module

• Condition : New

• Brand Name : CJMCU

• Type : module

Related Links

• FT2232H Datasheet

• VCP Drivers

• D2XX Drivers
