Product Images are shown for illustrative purposes only and may differ from actual product.

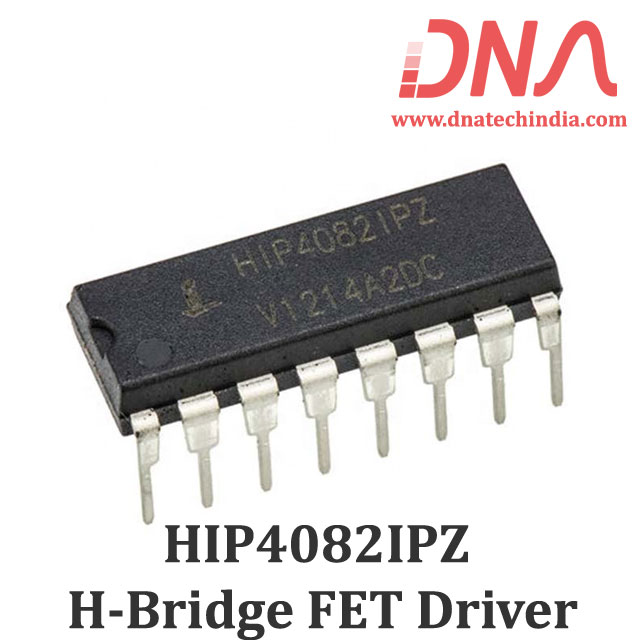

HIP4082IPZ H-Bridge FET Driver


Write a review | 0 reviews

  • Stock: 5

    Availability: InStock priceValidUntil: 2026-03-14

  • SKU: 3153 | DAE375

Availability: InStock priceValidUntil: 2026-03-14

  • Rs. 206.50 (inc GST)
    Rs.175.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

HIP4082IPZ H-Bridge N-Channel MOSFET Driver IC

HIP4082 80V, 1.25A Peak Current H-Bridge N-Channel MOSFET driver IC

The HIP4082 is a medium frequency, medium voltage H-Bridge N-Channel MOSFET driver IC, available in 16 lead plastic SOIC (N) and DIP packages.

HIP4082IPZ H-Bridge N-Channel MOSFET Driver IC is specially targeted for PWM motor control and UPS applications, bridge based designs are made simple and flexible with the HIP4082 H-bridge driver. With operation up to 80V, the device is best suited to applications of moderate power levels.

HIP4082 IC is similar to the HIP4081, it has a flexible input protocol for driving every possible switch combination except those which would cause a shoot-through condition. The HIP4082’s reduced drive current allows smaller packaging and it has a much wider range of programmable dead times (0.1 to 4.5s) making it ideal for switching frequencies up to 200kHz.

The HIP4082 does not contain an internal charge pump, but does incorporate non-latching level-shift translation control of the upper drive circuits. This set of features and specifications is optimized for applications where size and cost are important. For applications needing higher drive capability the HIP4080A and HIP4081A are recommended.

DNA solutions,Nashik has various Full & Half Bridge MOSFET Driver IC's.. Check out our complete collection of MOSFET DRIVER IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of HIP4082IPZ H-Bridge FET Driver

  • Independently Drives 4 N-Channel FET in Half Bridge or Full Bridge Configurations
  • Bootstrap Supply Max Voltage to 95VDC
  • Drives 1000pF Load in Free Air at 50°C with Rise and Fall Times of Typically 15ns
  • User-Programmable Dead Time (0.1 to 4.5s)
  • DIS (Disable) Overrides Input Control and Refreshes Bootstrap Capacitor when Pulled Low
  • Input Logic Thresholds Compatible with 5V to 15V Logic Levels
  • Shoot-Through Protection
  • Under voltage Protection

Application of HIP4082IPZ H-Bridge FET Driver


  • UPS Systems
  • DC Motor Controls
  • Full Bridge Power Supplies
  • Switching Power Amplifiers
  • Noise Cancellation Systems
  • Battery Powered Vehicles
  • Peripherals
  • Medium/Large Voice Coil Motors

Related Links

Package Includes

1 x HIP4082IPZ H-Bridge FET Driver

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
